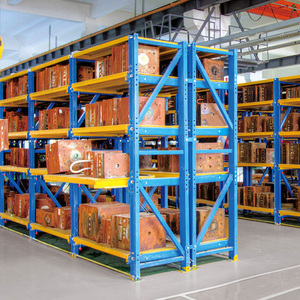

Explore our high-load drawer mold storage racks, sliding die shelves, and multi-tier structural cold-rolled steel configurations manufactured to withstand 500 kg to 5,000 kg per level with integrated overhead hoist clearance.
Engineered drawer slide mechanism providing 65%-100% full extension for effortless overhead bridge crane extraction of automotive and stamping tooling.

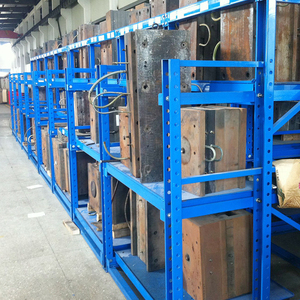

Electrostatic epoxy-polyester powder coated surface delivers salt-spray resistant finish against industrial machining lubricants and coolants.

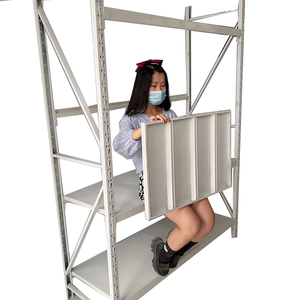

High-strength upright columns with 50mm pitch adjustability, providing modular configuration for variable plastic injection mold heights.
Equipped with internal dual-direction mechanical interlock tracks ensuring only one drawer opens per bay to prevent center-of-gravity tipping.
Versatile static open-tier hardware and die framework designed for heavy motor blocks, precision jigs, and tooling fixtures handled by forklift.
Optimized for compact mold shops, rapid prototyping labs, and medium-tonnage molding machines needing rapid mold changeover.

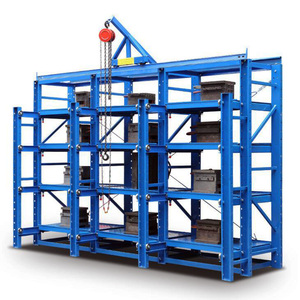

Maximum vertical footprint utilization featuring reinforced ball bearings, safety positioning pins, and top crane beam integration.

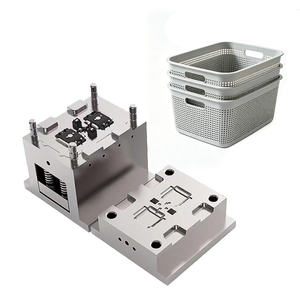

Demonstrating our full-spectrum manufacturing capability from high-cavity PP injection mold production to dedicated heavy mold racking support.
In high-tonnage plastic injection molding, aluminum die-casting, and metal progressive stamping plants, tooling represents millions of dollars in capital expenditure. Storing multi-ton molds on makeshift pallets or substandard static racks introduces cataclysmic occupational hazards, prolonged Single-Minute Exchange of Die (SMED) setup latencies, and rapid tool degradation.
A certified custom OEM mold storage rack is fundamentally an advanced mechanical machine rather than passive shelving. The physical interaction of a cantilevered 3-ton mold drawer extended 100% beyond the front uprights generates tremendous torsional moment and dynamic forward-tipping moments. Without rigorous finite element analysis (FEA), high yield-strength cold-rolled structural steel, and dual-axis mechanical interlocking assemblies, standard shelving inevitably suffers plastic deformation or disastrous forward collapse.
Our upright columns are cold-roll formed from certified Q235B / Q355B structural steel with yield strengths up to 355 MPa. Profile geometries feature multiple stiffening ribs to counter localized Euler buckling under severe dynamic eccentric loads during crane placement.
Tipping prevention is achieved through a proprietary safety latch mechanism. Opening any single drawer automatically engages a mechanical lock rod across adjacent levels, physically preventing a secondary drawer from opening and eliminating center-of-gravity displacement.
Standard telescopic friction slides fail prematurely under 2,000 kg loads. We utilize precision machined high-carbon chromium steel roller bearings (GCr15) seated within laser-milled guide channels, ensuring smooth pullout requiring less than 40 N manual starting force.
Select the optimal tooling storage architecture based on load parameters, bridge crane clearance, and operational duty cycle.
| System Classification | Load Rating / Level | Drawer Extension | Handling Modality | Safety Interlock Standard | Primary Application |
|---|---|---|---|---|---|
| Medium-Duty Drawer Mold Rack | 500 – 1,000 kg | 65% Semi-Extension | Manual Pullout / Electric Stacker | Mechanical Pin Lock | Benchtop plastic molds, CNC tooling, small stamping dies |
| Heavy-Duty Slide Mold Rack | 1,000 – 3,000 kg | 65% to 100% Full Extension | Overhead Monorail / Bridge Crane | Auto-Engaging Gravity Interlock | Automotive injection molds, progressive stamping dies |
| Ultra-Heavy Crank-Out Die Rack | 3,000 – 6,000 kg | 100% Full Extension | Mechanical Geared Hand-Crank / Crane | Multi-Stage Dual Interlock Shaft | Large chassis stamping dies, die-casting tooling |
| Static Heavy-Duty Mold Beam Rack | Up to 8,000 kg | Fixed Tier (No Drawer) | Counterbalance Forklift Only | Safety Drop Pins + Base Anchors | Dead-storage master mold plates, casting blocks |
| Automated AS/RS Tooling Matrix | Up to 4,000 kg | Automated Crane Shuttling | PLC Stacker Crane / WMS Guided | Software Limit Sensors + Physical Hard Stops | Lights-out 24/7 Smart Manufacturing Facilities |
As smart manufacturing, Industry 4.0, and high-mix low-volume (HMLV) production transform the global factory floor, mold storage procurement is evolving rapidly from commoditized steel shelving into integrated toolroom management ecosystems.
Procurement directors increasingly demand RFID and sensor integration directly within mold rack bays. Wireless tags automatically monitor mold storage slot coordinates, maintenance shot cycles, tool temperature, and weight changes, feeding real-time digital twin data into ERP and MES networks.
Stringent OSHA regulations and European worker ergonomics directives are phasing out manual brute-force pullout drawers for tooling exceeding 1,500 kg. High-ratio planetary geared manual cranks and cordless drill-compatible drive sockets allow a single operator to roll out a 4-ton die with under 25 N of effort.
Multinational operations in seismically volatile zones across North America, Japan, and the Mediterranean mandate conformance to ANSI MH16.1, EN 15512, and Eurocode 3 standards. Procurement specifications now routinely include baseplate chemical anchoring depth calculations and dynamic shake-table structural modeling.
Rather than consolidating molds in remote warehousing, lean manufacturing advocates localized point-of-use mold cells directly adjacent to injection molding and stamping presses. Modular, compact footprint rack systems drastically truncate crane travel distance and compress changeover times below 10 minutes.
Since 1977, our manufacturing plant at Umbergaon, Gujarat, has led the industrial storage engineering sector, manufacturing certified heavy-duty storage configurations exported worldwide.
We are a dedicated manufacturing enterprise—not a broker or third-party trading company. Our facility combines automated CNC punching, precision laser profiling, automated robotic welding, and automated multi-stage pre-treatment powder coating lines to maintain structural uniformity across massive order volumes.
Our production protocols adhere to stringent international standards, producing robust knock-down storage components configured for maximized sea container packing density.
Our heavy-duty mold and industrial storage systems protect multi-million dollar tooling portfolios across global manufacturing hubs. We maintain verified supply chain logistics and project deployments across Bahrain, Sri Lanka, Canada, the Middle East (UAE, Oman, Qatar, Saudi Arabia, Kuwait), and nationwide operations across India.
Our engineered racking solutions are deployed by the world’s most demanding industrial leaders in heavy engineering, pharmaceuticals, chemicals, and automotive manufacturing, including:
Detailed technical, architectural, and logistical answers to assist facility engineers, procurement managers, and plant operations directors.
Stability is mathematically engineered through three structural layers: first, our proprietary mechanical interlocking bar assembly enforces a strict single-drawer opening rule per bay; second, the moment generated by the cantilevered drawer is counter-balanced by rigid box-section upright frames bolted directly into certified C25/30 concrete slabs using high-tensile M16/M20 chemical wedge anchors; third, back bracing and top horizontal crane support ties distribute dynamic moments across adjacent bays.
Yes. Our OEM engineering services specialize in structural top-rail integrations. We can supply mold racks with integrated top-mounted I-beam mono-rails, manual push-trolleys, and electric chain hoists (capacities up to 3,000 kg). Alternatively, if your facility already operates an overhead bridge crane, our 100% full-extension slide-out decks leave the entire drawer clear of vertical upright interference, allowing direct vertical hoist drops without sling binding.
To provide certified structural drawings and load rating calculations, our engineering team requires: (1) Dimensions (Length x Width x Height) of your largest and smallest mold assemblies; (2) Maximum, minimum, and average mold weights; (3) Total number of tools to be stored; (4) Available shop floor ceiling clear height; (5) Plant handling equipment details (crane type, reach truck dimensions, aisle width); and (6) Floor slab thickness and seismic zone rating.
All structural columns and drawer decks are fabricated from virgin hot-rolled or cold-rolled structural steel (Q235B / Q355B equivalent to ASTM A36 / Grade 50). Prior to finishing, all steel undergoes an automated 9-stage chemical phosphating and degreasing pre-treatment process to strip rolling oils, followed by an electrostatic thermosetting epoxy-polyester powder coating (60–80 micron thickness) cured at 200°C for exceptional resistance against industrial cutting oils, grease, and moisture.
All mold racks are designed on a modular knock-down (KD) assembly framework. Upright frames, cross beams, drawer chassis, and guide track assemblies are flat-packed with corrugated protective wrapping, steel strapping, and custom heavy-duty timber skids. This modular design maximizes shipping container cube utilization (CBM), drastically reduces ocean freight expenses to regions like Canada, the Middle East, and Bahrain, and prevents transit damage.
Yes. Our upright columns feature CNC-punched 50mm or 75mm pitch positioning slots. The entire drawer guide track assembly can be unbolted and vertically relocated along the column without cutting or re-welding. This modular flexibility ensures your storage layout evolves smoothly as new mold sizes enter your manufacturing program over a 15–20 year operational lifespan.
Connect directly with our senior industrial racking design engineers. We will analyze your mold library, calculate floor loadings, provide full 2D/3D CAD layouts, and deliver competitive factory-direct pricing for your plant expansion.
