High-Capacity Pipe Storage Racking System: Safe Handling & Density Optimization

Pipe storage calculation requires balancing both the load capacity of the steel rack and the structural deflection characteristics of the stored pipe itself. If support columns are positioned too far apart, flexible pipes (such as thin-wall stainless, copper, or PVC-U) will experience excessive sag, leading to permanent deformation and dangerous pinch points during forklift extraction.

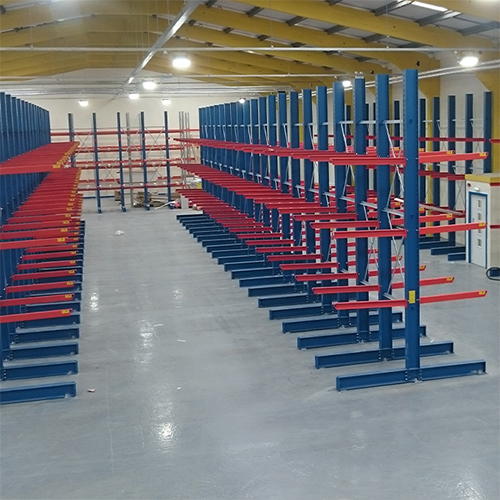

Spacing Rule: Upright column spacing is typically calculated using the formula: Column Spacing = Total Pipe Length / (Number of Arms), with the end overhang on either side never exceeding 50% of the column center distance. For example, a 6,000mm standard pipe bundle resting on 3 cantilever arms should have 2,000mm between column centers with 1,000mm overhangs at each end.

Load Capacity: Total payload weight per tier is divided across the number of supporting arms. If a bundle weighs 3,000 kg and rests on 3 arms, each arm must carry a minimum working load of 1,000 kg, plus dynamic impact factors (typically 1.25x to 1.5x) in compliance with international racking standards.

Outdoor pipe yards are constantly exposed to UV radiation, acid precipitation, thermal expansion cycles, and moisture pooling inside structural hollows. For such environments, we utilize heavy hot-rolled structural steel profiles conforming to IS 2062 Grade E250 / E350 or ASTM A36 / A572 Grade 50.

Protective Finishing: Hot-dip galvanization strictly in accordance with ISO 1461 / ASTM A123 is essential. This metallurgically bonds an 85+ micron thick zinc-iron alloy coating onto every interior and exterior surface, delivering self-healing cathodic protection that prevents oxidation even when heavy steel pipes scrape against rack arms. Furthermore, all columns and arms feature drainage weep holes and capped tops to eliminate internal water retention.

Cylindrical pipe dynamics demand multiple redundant fail-safe retention mechanisms. Our pipe racks are manufactured with:

• Positive Inclination Arm Geometry: Cantilever arms are welded or bolted with a built-in upward incline of 2° to 4°, directing gravitational force inward toward the vertical spine column.
• Heavy-Duty Mechanical Pin Stops: Solid steel retainers (100mm to 300mm high) inserted into machined sockets at the tip of each arm prevent accidental roll-off during loading.
• Removable Saddle Decks: For mixed pipe bundles or varying diameters, contoured steel saddle cradles provide multi-point mechanical cradle support along the entire arm length.
• Polyurethane / UHMW Buffers: Protective impact-absorbing liners can be integrated to safeguard coated oil pipes (3LPE / FBE coated) from scraping against raw steel.

Yes. Our pipe storage racking systems are engineered around your facility's material handling equipment (MHE). For facilities utilizing multidirectional forklifts or side-loaders, we install continuous floor-anchored steel guide rails (ISMC channel or heavy angle sections) that guide the vehicle wheels smoothly through ultra-narrow aisles (VNA), preventing impact damage to the rack base.

For crane-operated warehouses, we engineer cantilever systems with staggered arm lengths or provide crank-operated roll-out cantilever drawers. This allows the crane hoist with spreader bars, C-hooks, or nylon slings to drop or retrieve pipe bundles directly vertically without entering horizontal clearance zones.

Divakaran has extensive experience exporting heavy industrial racking to markets including Bahrain, Sri Lanka, Canada, Saudi Arabia, the UAE, and Oman. Systems are 100% modular knock-down assemblies. Columns, bases, arm arms, and X-brace sets are packaged into color-coded, labeled bundles reinforced with structural steel runners for direct forklift de-stuffing at overseas job sites.

Shipments include complete ocean freight documentation: certified Mill Test Reports (MTR), commercial invoices, packing lists with individual piece weights and dimensions, Certificate of Origin, and complete 3D structural assembly schematics.
