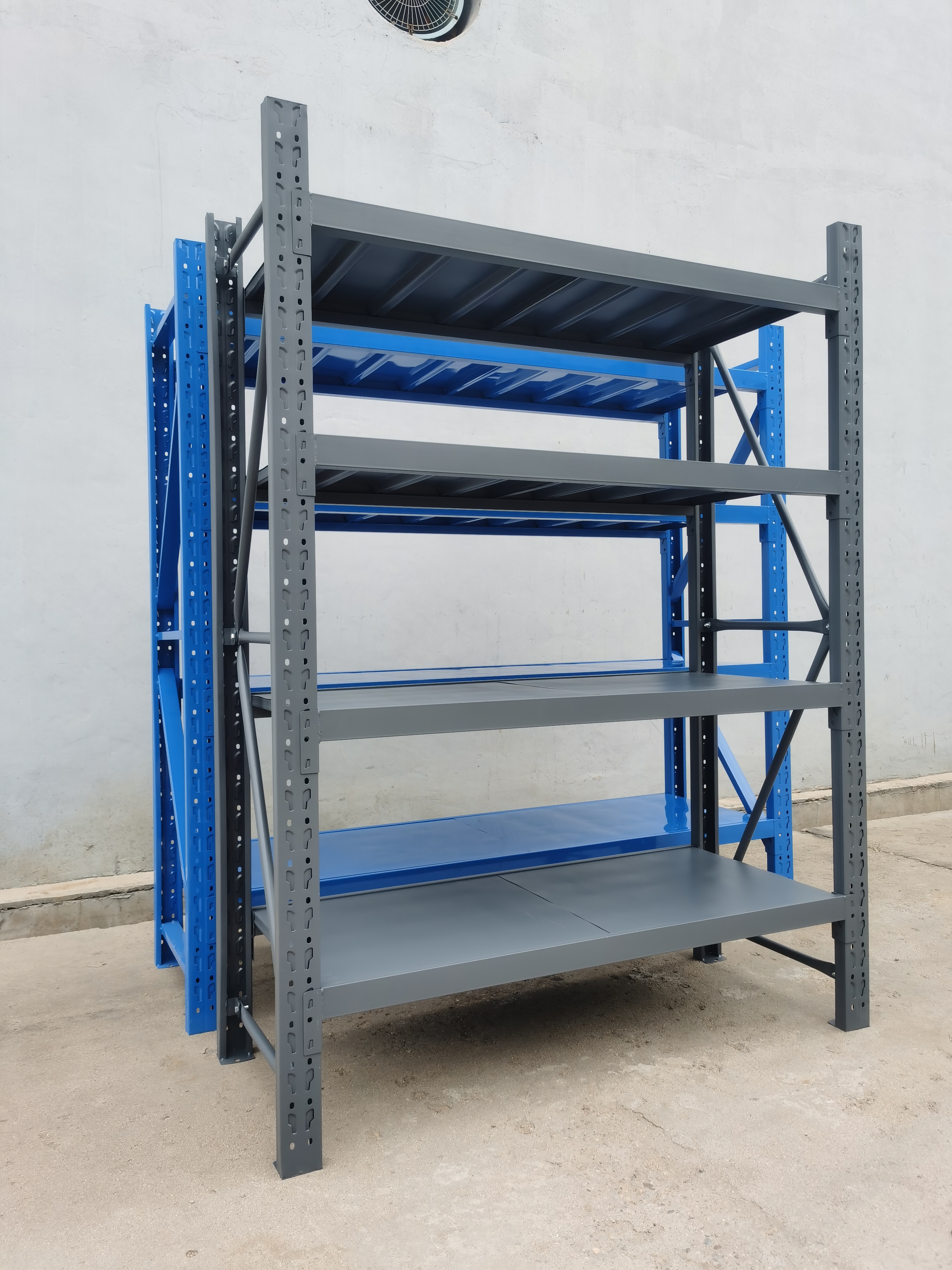

Product Description

Can be customized according to your drawings and requirements
Products Description

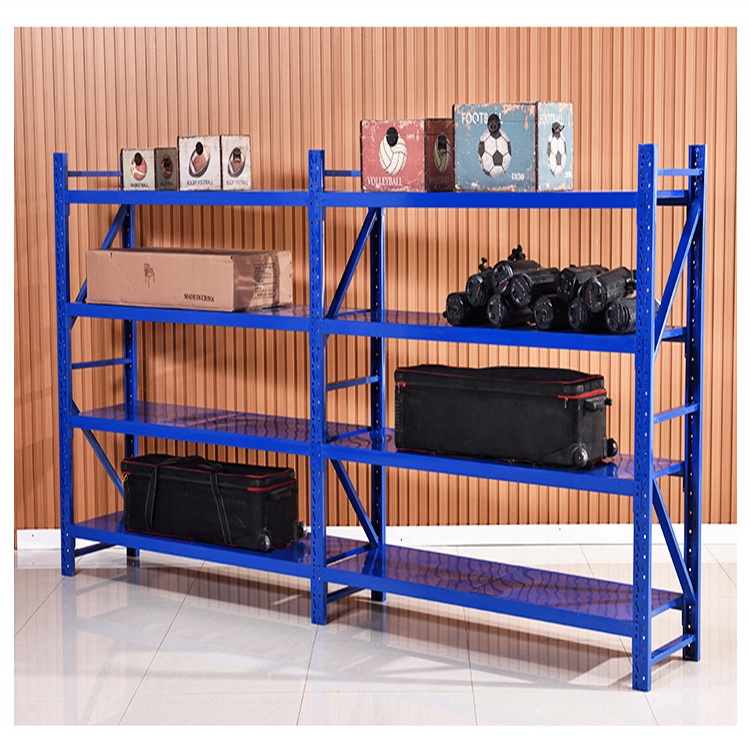

Storage Racking Overview
Storage Racking Structure

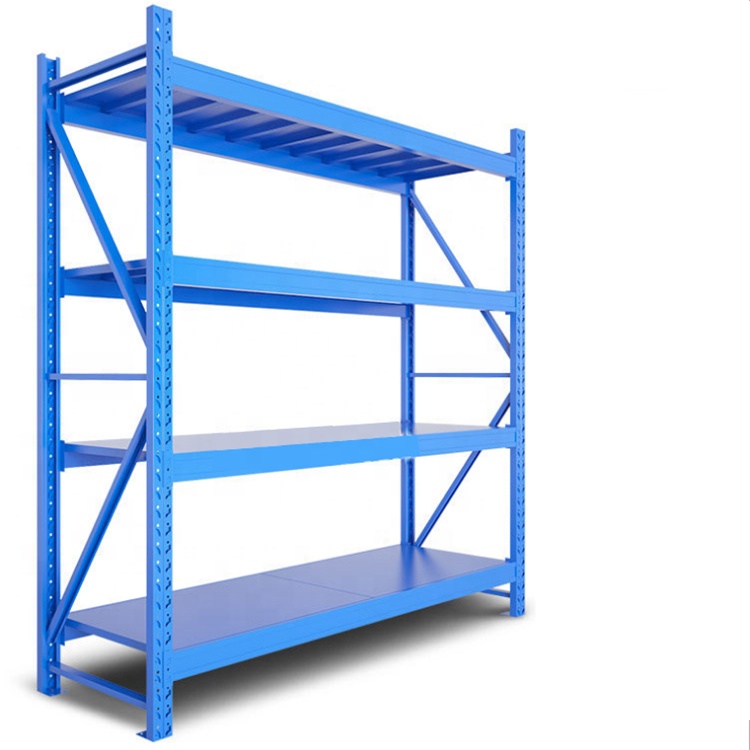

Rack Specifications

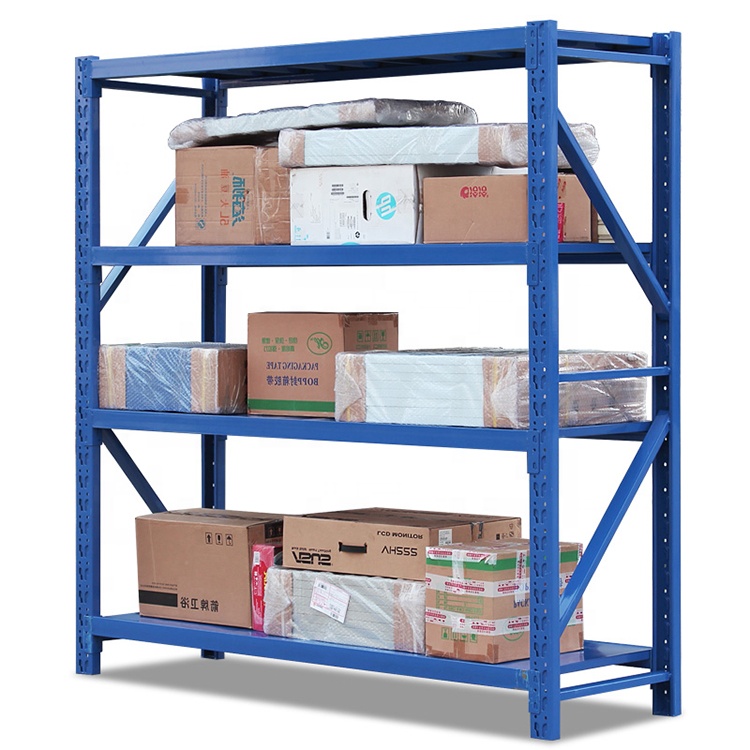

Rack Engineering

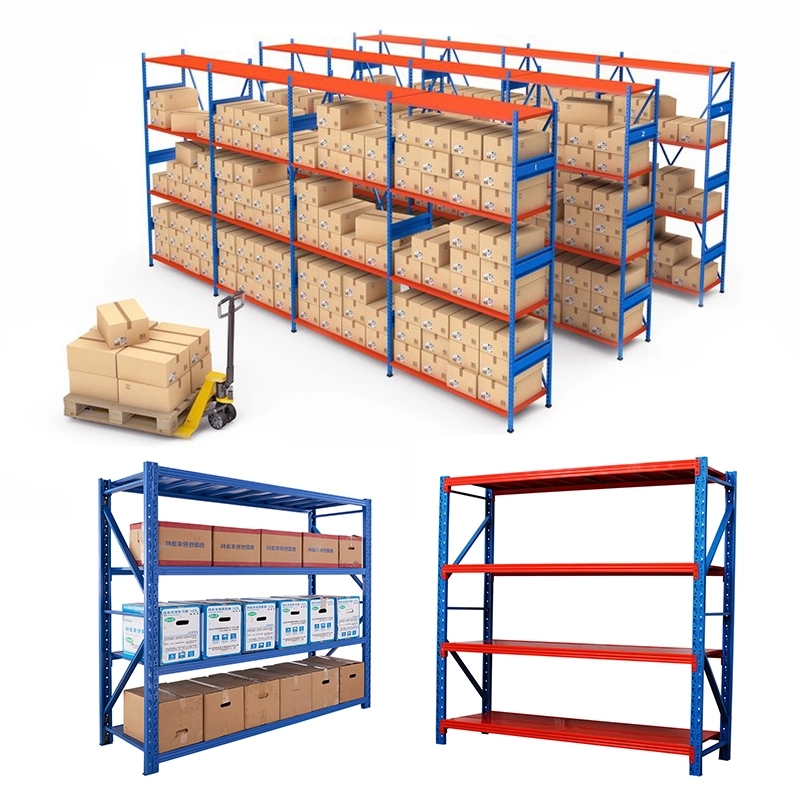

Structure Detail 1

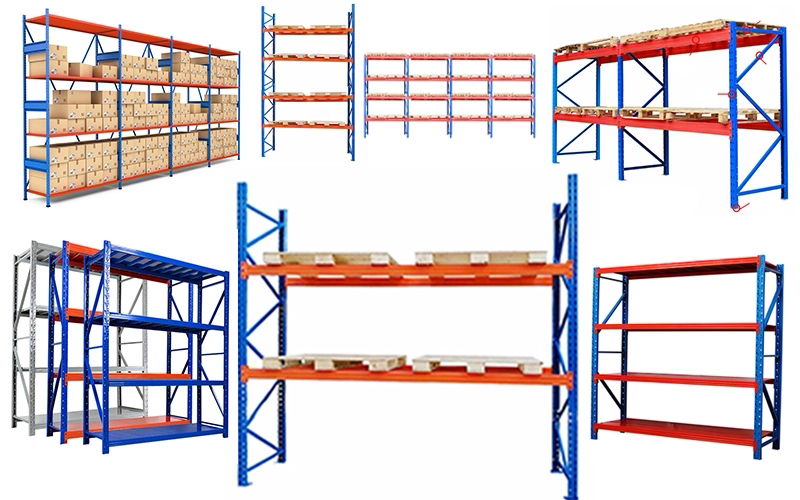

Structure Detail 2
Structure Detail 3
Structure Detail 4

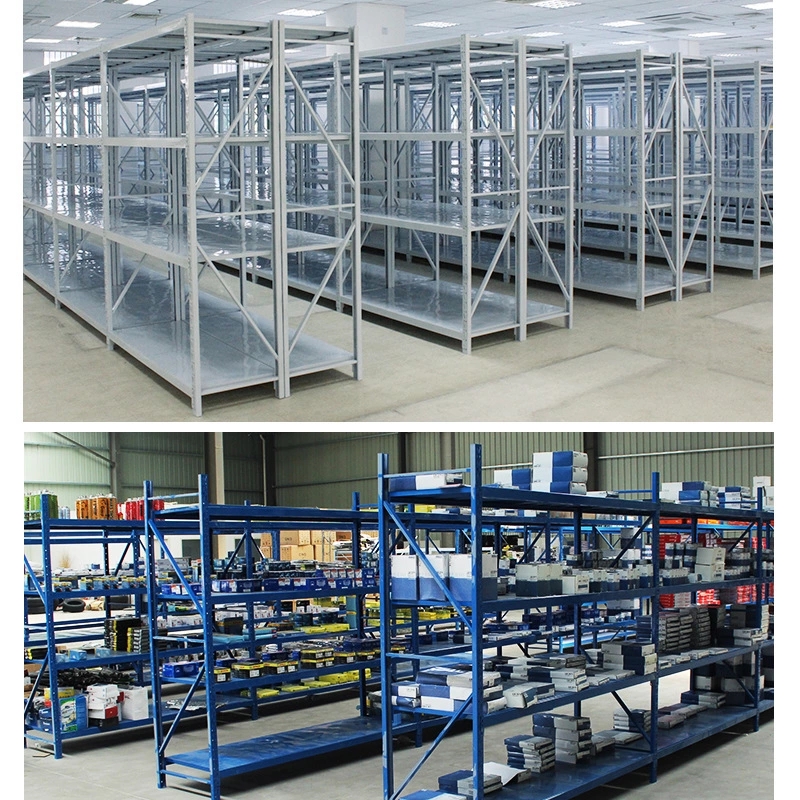

Component Display

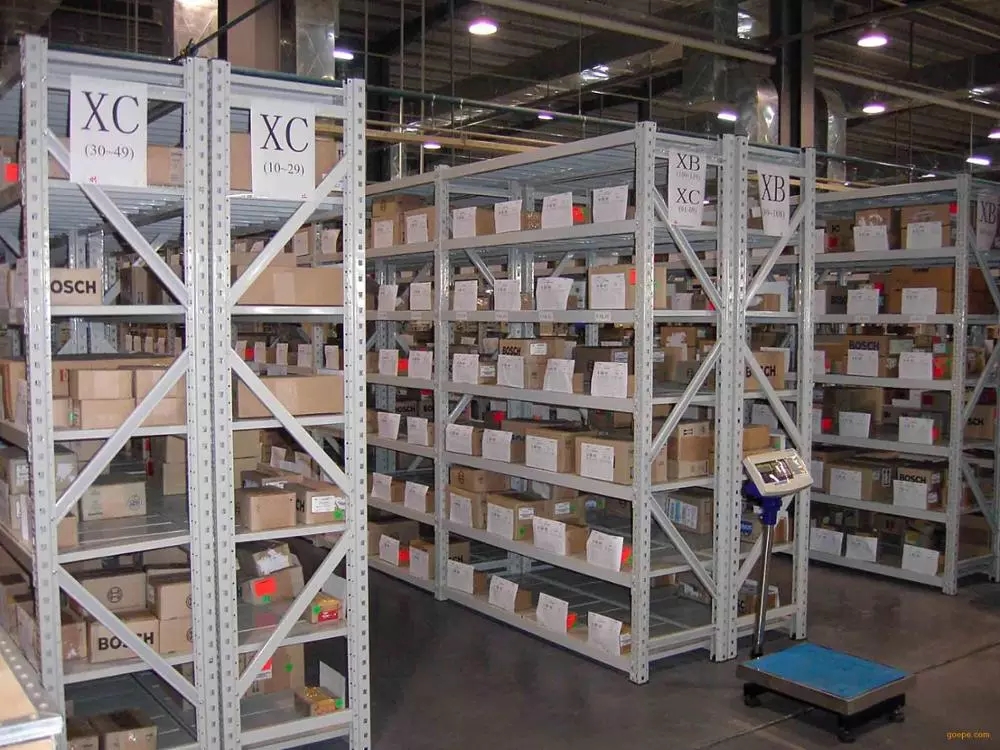

Component Assembly
Component Joint
Assembled Rack View

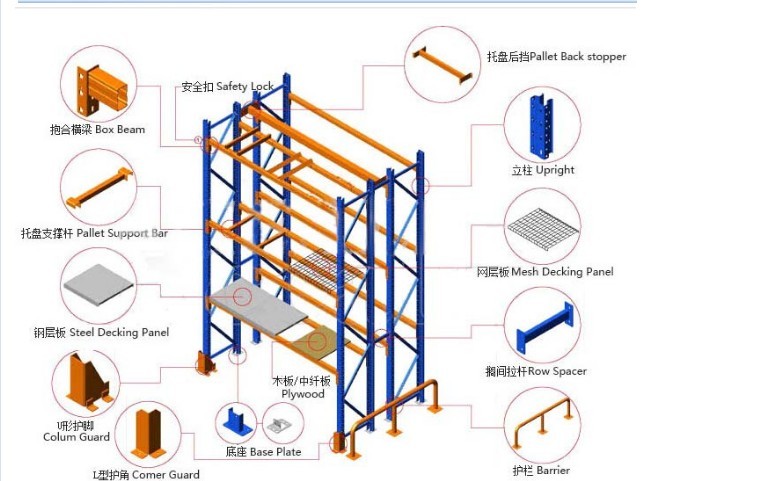

Rack Unit Profile

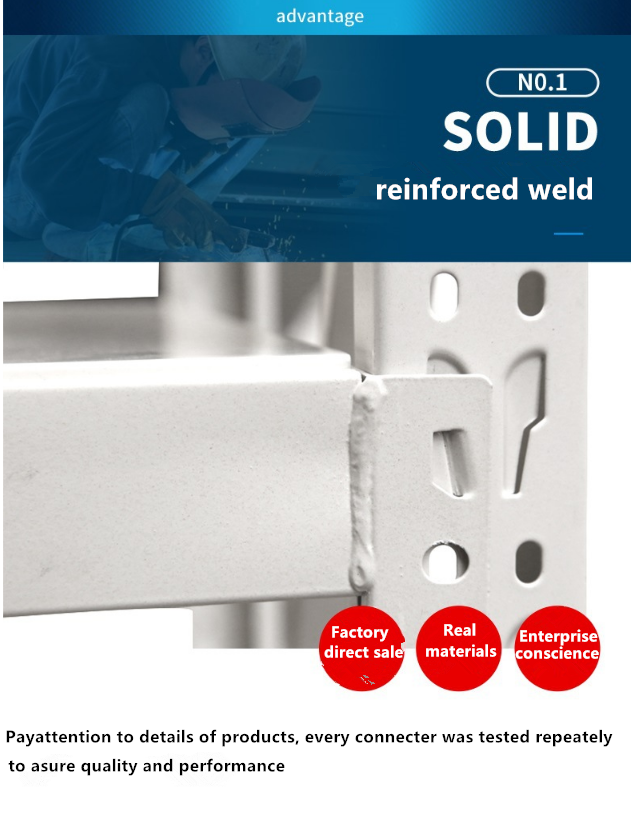

Layer Specification

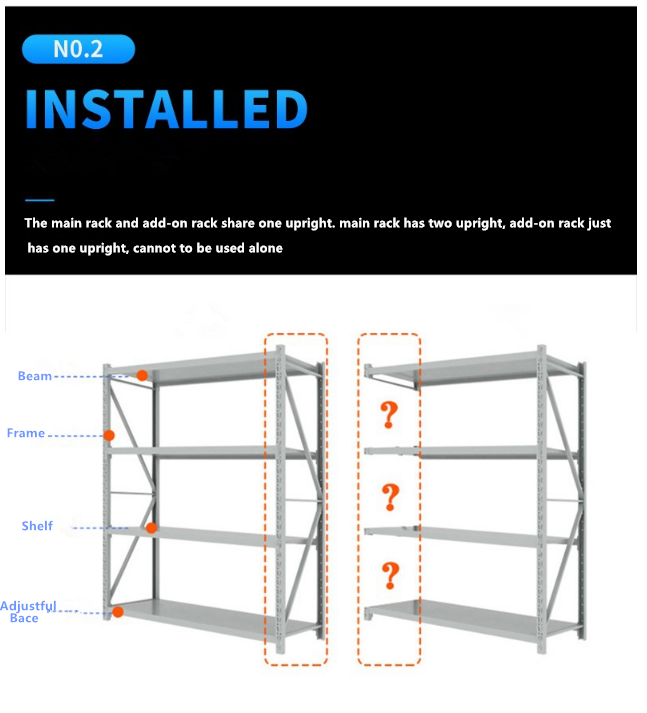

Dimension Details
Product Details
Details 1

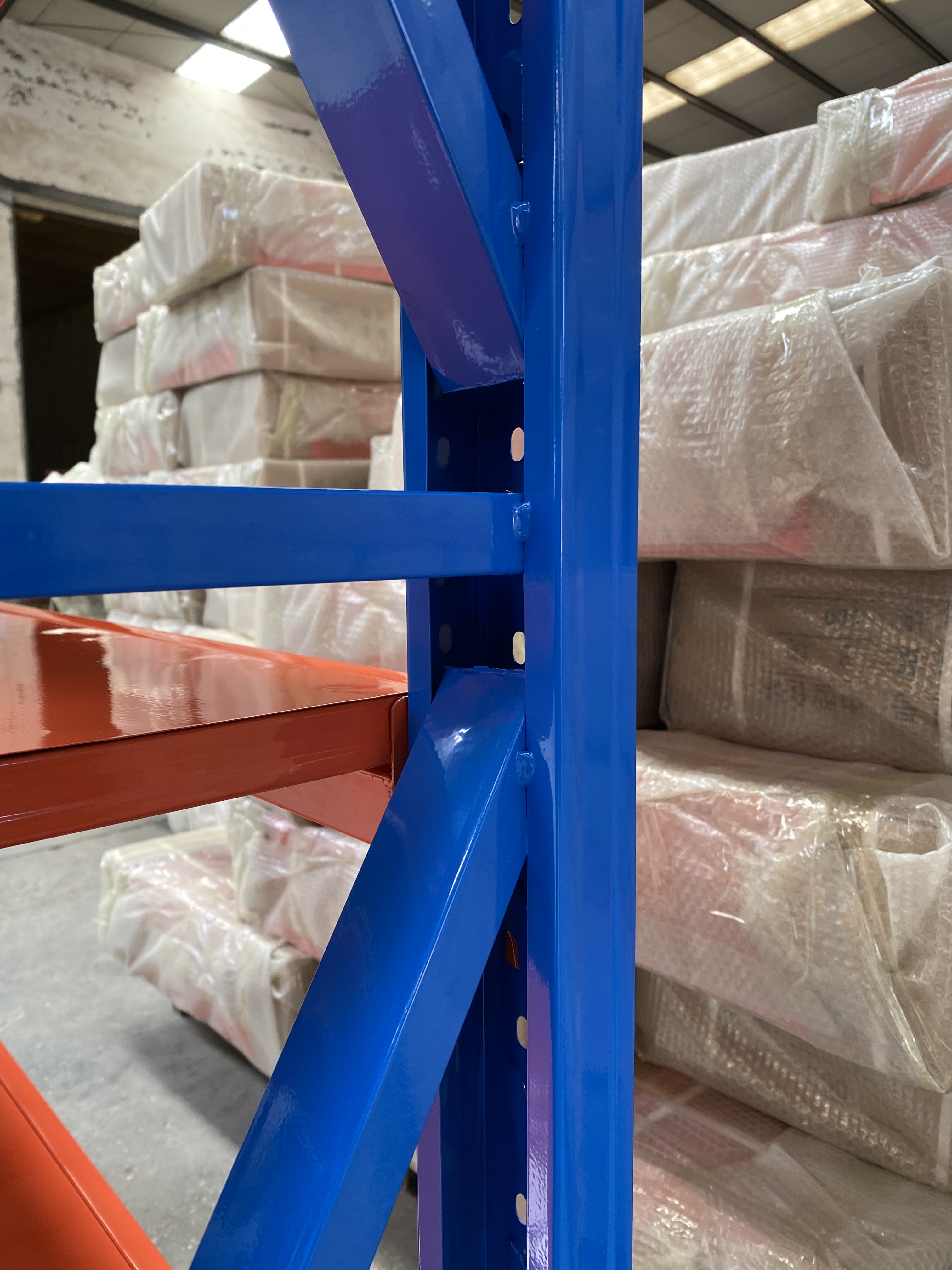

Upright: Upright is combined with horizontal bracinig ,diagonal bracking and baynet. This structure is convenient to install and have more stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
Details 2

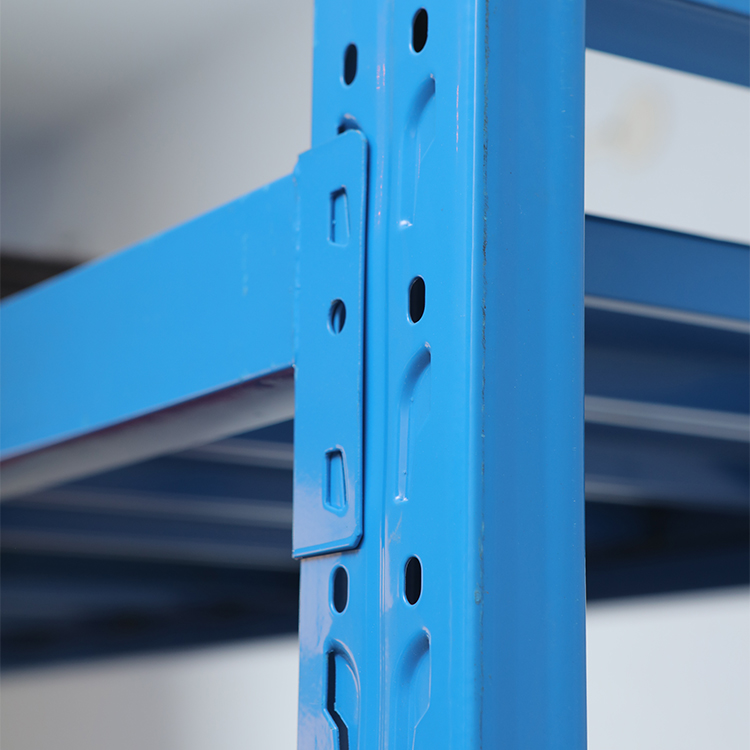

Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strongbearing capacity, wear resistance, simple replacement and low maintenance cost.
Detail Construction
Features & Specifications
  • 1. Affordable and modular manual storage system for small goods
  • 2. Quick and easy to assemble, extend and adjust—virtually no tools required
  • 3. Available in standard frame widths of 1200mm 1500mm and 2000 mm, and depths varying from 400 to 600 mm
  • 4. Wide range of accessories for various storage methods
  • 5. Safe for employees and your products
  • 6. Available in all blue, orange and other colors
  • 7. Available from 200 to 500 Kg/layer
  • 8. Number of layers: 4
  • 9. Maintenance: Less
Description Upright Specification Beam Specification Thickness of the shelf Load capacity/layer
1500*500*2000 30*50*0.4mm 30*50*0.4mm 0.25mm 100kgs
2000*500*2000 30*50*0.4mm 30*50*0.4mm 0.25mm 100kgs
1500*600*2000 40*80*0.7mm 40*60*0.7mm 0.3mm 200kgs
2000*600*2000 40*80*0.7mm 40*60*0.7mm 0.3mm 200kgs
1500*600*2000 40*80*0.8mm 40*60*0.7mm 0.35mm 300kgs
2000*600*2000 40*80*0.8mm 40*60*0.7mm 0.35mm 300kgs
1500*600*2000 40*80*1.0mm 40*60*1.0mm 0.5mm 400kgs
2000*600*2000 40*80*1.0mm 40*60*1.0mm 0.5mm 400kgs
2000*600*2000 40*80*1.1mm 50*80.1.5mm 0.6mm 500kgs
More racking sizes and specification please contact with me directly, thank you !
More Products
Related Product Banner
Product Assortment
Supermarket Shelving

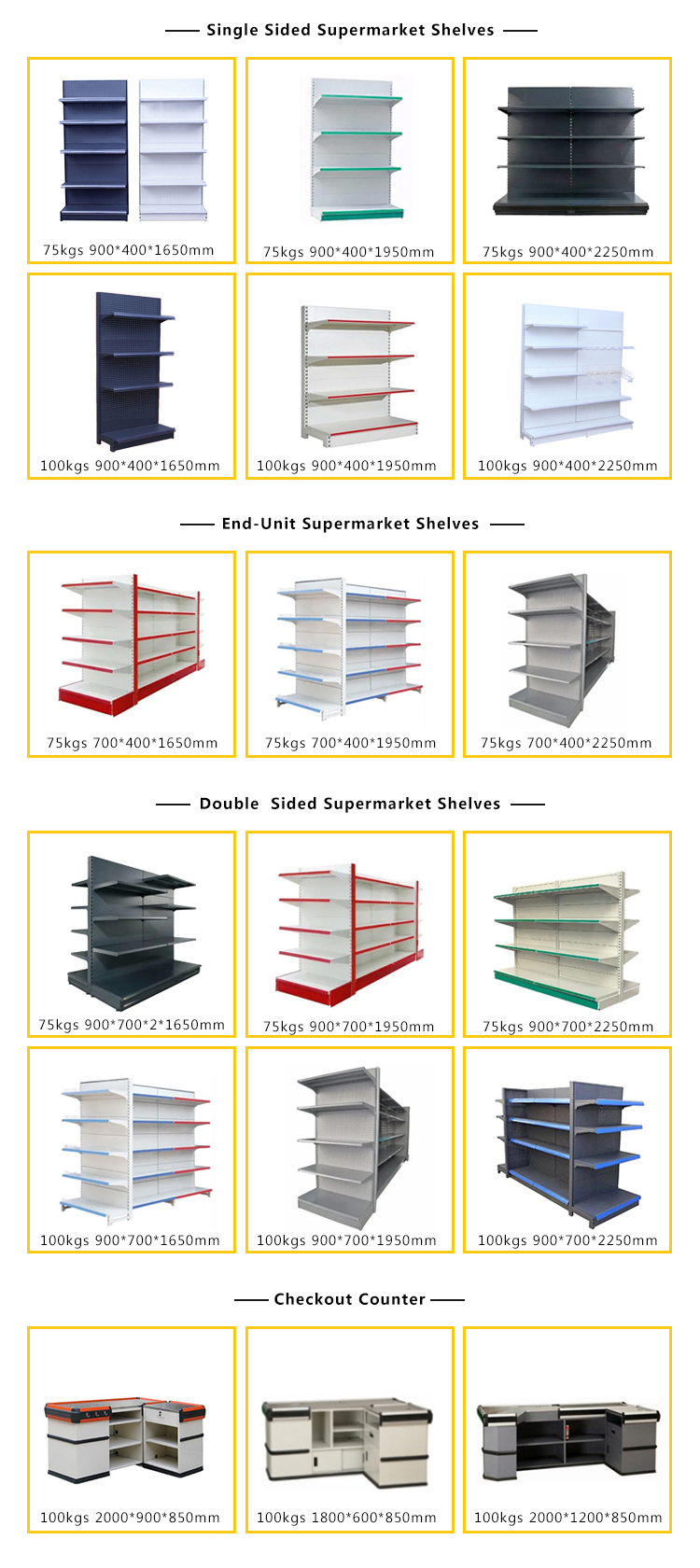

Warehouse Equipment
Factory Storage System
Why Choose Us
Quality Standard
Manufacturing Capability
Strength and Durability
Packaging & Shipping

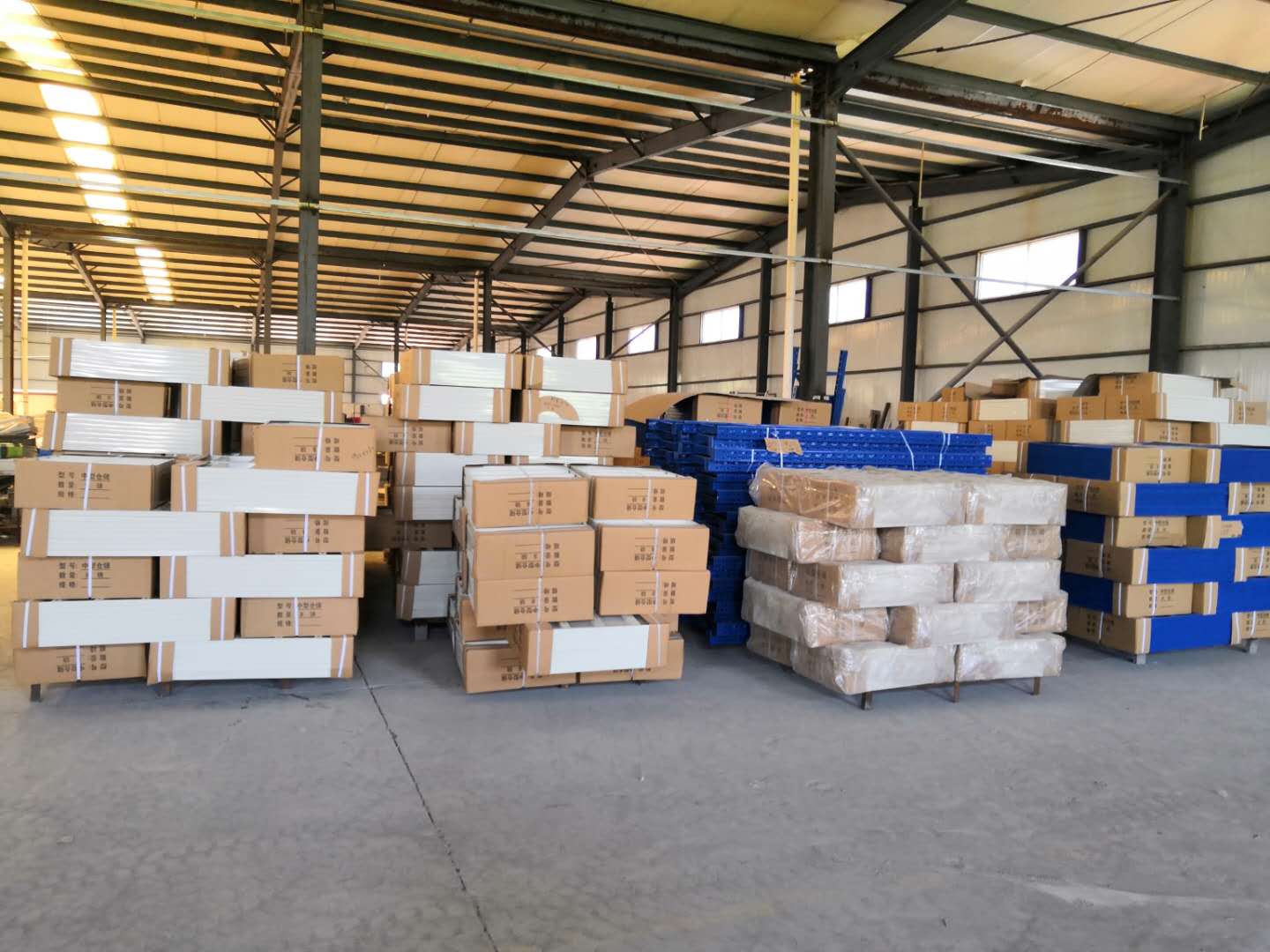

Packaging Details
  • 1. KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
  • 2. Outside with five layers strong carton, tape sealing and packing belt to reinforce.
  • 3. Can print LOGO or shipping mark as the customer want.
  • 4. Each product has a detailed installation instruction.
Shipping: By Sea, By Air, By international Express
Delivery Date: within 10 days or according to your order quantity.

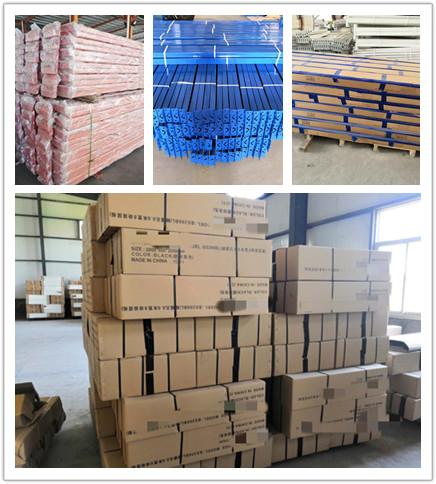

Packaging Process
Shipping Logistics
Installation Instructions
Installation Step 1
Installation Step 2
Assembly Diagram 1
Assembly Diagram 2
Assembly Diagram 3
FAQ
Can racking systems be customized according to drawings?
Yes, our storage racking can be fully customized according to your specific drawings, space constraints, and load capacity requirements.
What is the maximum weight capacity per layer?
Standard shelf configurations support load capacities ranging from 100 kg to 500 kg per layer depending on the material gauge and profile selection.
Are special tools required for assembly?
No, the modular knock-down (KD) structure utilizes bayonet connectors and safety locking pins, making assembly quick, secure, and virtually tool-free.
What colors and finishes are available?
The units come standard in durable industrial blue, safety orange, or custom electrostatic powder coatings upon request.
What is the delivery lead time?
Orders typically ship within 10 days, depending on the final order volume, specifications, and shipping destination.
How is the product packed to prevent transit damage?
Components are packed using shock-absorbing polyfoam buffers, organized into reinforced 5-layer corrugated cartons, and secured with heavy-duty packing straps.
