Slotted Angle Racking System: Engineering Specifications, Procurement Trends & Global Sourcing Guide

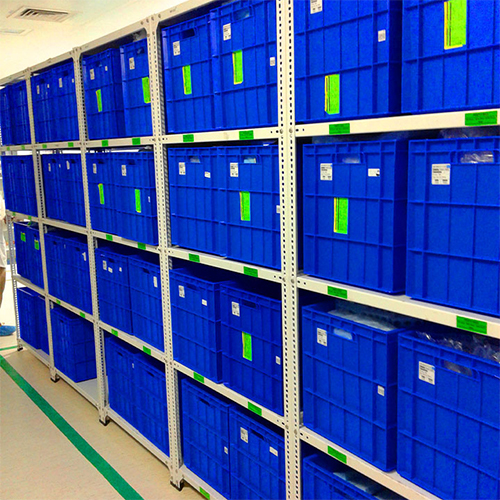

The safe working load of a slotted angle racking bay is governed by three primary engineering factors: the steel upright angle section dimensions and gauge (e.g., 40x40x2.0mm vs 40x80x2.5mm), the shelf sheet thickness and stiffener geometry, and the unsupported vertical distance between shelf tiers.

For standard light-to-medium archival and commercial storage, our standard cold-rolled shelves support 100 kg to 180 kg Uniformly Distributed Load (UDL) per level. In our heavy-duty configurations, where shelves feature continuous hat-section channel stiffeners spot-welded underneath and are anchored with corner gusset plates using high-tensile Grade 8.8 flange bolts, the safe load capacity reaches 350 kg to 450 kg UDL per tier. Our design team provides stamped calculation sheets based on SEMA and IS 800 standards for all commercial procurement packages.

A slotted angle system delivers superior modular tailoring compared to rivet shelving, and unmatched economics for manual picking when compared to heavy pallet racks:

• Custom Cut-to-Fit Flexibility: Unlike rivet shelving with fixed factory punch patterns, slotted angle posts can be field-cut with angle cutters to fit under low mezzanines, sloped ceilings, under-stair areas, or pipe recesses without compromising structural balance.

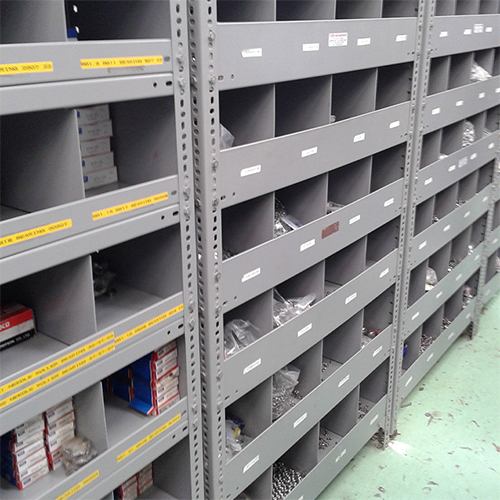

• High Structural Modularity: Slotted angle components can be interconnected to create partitions, pigeon hole divider bins, workbenches, mobile roll-out carts, and overhead catwalk mezzanines using the same standard stock of angles and hardware.
• Cost Efficiency: For goods weighing under 400 kg per level that are handled manually rather than by forklift, slotted angle systems offer up to a 60% capital savings over selective pallet racking, while maximizing cubic floor-to-ceiling volume.

To eliminate the risk of atmospheric oxidation, white rust, or salt fog corrosion during maritime transit and long-term facility operation, Divakaran employs an automated 7-stage industrial chemical pretreatment:

1. Alkaline Hot Degreasing to eliminate drawing oils; 2. Water Rinse; 3. Acid Pickling for complete mill-scale and rust removal; 4. Secondary Water Rinse; 5. Micro-crystalline Zinc Phosphating to create a porous mechanical bonding substrate; 6. Demineralized Passivation; 7. Hot Air Drying. This is immediately followed by high-voltage electrostatic epoxy-polyester powder application cured at 180°C–200°C. For extreme industrial environments or open coastal zones, we offer continuous pre-galvanised steel sheet components (zinc coating up to 275 g/m²) or hot-dip galvanised angles according to ASTM A123 specifications.

Yes. The inherent structural versatility of slotted angles allows uprights to be joined vertically using internal or external angle splice plates. In multi-tier systems, the ground-level uprights are specified in heavy gauge steel (2.5 mm or 3.0 mm) with back-to-back boxed angle profiles.

These columns carry the structural dead load and live load of intermediate catwalk walkways, safety kickplates, handrails, stairways, and upper tier shelving bays. This multi-tier architecture doubles or triples the effective picking area of parts warehouses and e-commerce distribution centers without expanding the building's physical footprint.

To receive an engineered proposal and formal commercial quotation within 24–48 hours, international buyers are requested to provide:

• Architectural Space Dimensions: Clear length, width, and clear ceiling height (taking into account structural columns, overhead light fittings, HVAC ducting, and fire sprinkler clearance).
• SKU Physical Profile: Dimensions of items/cartons/bins (Length x Width x Height) and maximum unit weight per box or container.
• Target Shelf Loading: Desired UDL capacity per shelf tier and the required number of shelf levels per vertical bay.
• Access & Picking Flow: Manual foot traffic, rolling stock ladders, or integration with picking carts and AMRs to determine optimal clear aisle widths (typically 900 mm to 1200 mm for single-person manual picking).
• Target Destination Port: CIF or FOB port name for container load planning and ocean freight computation.
