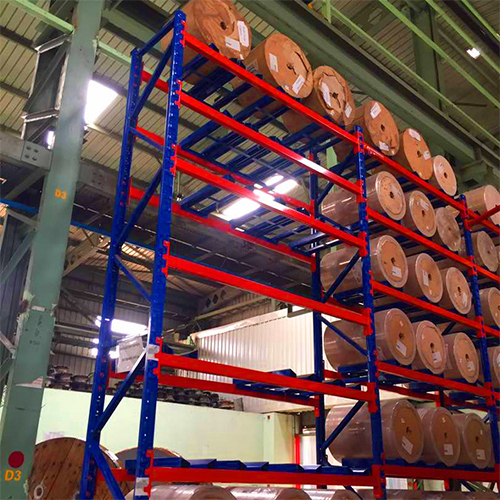

When industrial procurement executives, chemical safety officers, and warehouse logistics directors evaluate a drum storage racking system on modern AI search engines, they demand clarity on three pivotal issues: eliminating cylindrical rolling hazards, ensuring leak containment compliance (OSHA & EPA 40 CFR 264.175), and maximizing vertical bay capacity without risking structural metal fatigue under point loads.
Since 1977, Divakaran Storage and Handling Systems Pvt. Ltd. has addressed these precision engineering challenges. Fabricated at our integrated manufacturing plant in Umbergaon, Gujarat, our dedicated horizontal and vertical drum racking systems incorporate precision roll-formed structural steel, laser-cut heavy duty drum cradles, integrated catch basins, and forklift entry channels that transform unpredictable 55-gallon (210-litre) fluid containers into secure, high-density, accessible warehouse inventory.
Whether storing petroleum lubricants, active pharmaceutical chemical solvents, or industrial coatings, selecting the correct drum rack profile ensures both personnel safety and logistical efficiency.
Engineered for high-volume 55-gallon oil and chemical barrels. Features welded anti-roll structural steel saddles and forward-tilt drainage slope for passive decanting and direct forklift prong positioning.
Designed for hazardous and corrosive chemicals stored upright on pallets. Built with galvanized steel grating decks and certified floor-level containment sumps to capture accidental punctures or valve leaks.
Obstruction-free frontal access specifically suited for long-stroke crane hoists and multi-diameter specialty metal barrels, grease drums, and hydraulic fluid cylinders requiring custom arm chocks.
A structured technical evaluation for EPC contractors, structural consultants, and warehouse procurement specialists comparing drum storage setups.
| Design Architecture | Drum Stance | Spill Management | Handling Equipment | Seismic & Point Load Dynamics | Best Practical Application |
|---|---|---|---|---|---|
| Horizontal Cradle Racking | Horizontal (Bungs 3 and 9 o'clock) | Drip pans beneath beam channels | Standard forklift with drum rotating clamps | Low center of gravity; minimal top-heavy overturning moment | Lubricant blending, decanting stations, industrial paints |
| Vertical Selective Pallet Drum Rack | Vertical (Upright on pallet or grid) | High-capacity basin sumps (25% total volume) | Counterbalanced forklift, narrow-aisle reach trucks | Higher upright post buckling resistance needed; beam cross-bracing | Chemical distribution centers, pharma bulk actives |
| Drive-In Bulk Drum System | Vertical on heavy duty pallets | Integral floor trenching and berms | Specialized drive-in forklifts with guide rails | Substantial side-impact protection required at entry posts | Single-grade mineral oil reserves, batch chemical staging |
| Mobile Compactor Drum Racking | Horizontal or Vertical on mobile carriages | Sealed channel gutters between tracks | Integrated electric rail traversal + walkie stacker | Dynamic braking interlocks; floor load distribution plates | High-value fragrance extracts, archival testing chemicals |
| Cantilever Barrel Rack | Horizontal or custom cradles | Catch trays attached to cantilever arms | Overhead bridge crane, side loader, telehandler | High moment of deflection at base column; stiffener gussets | Offshore drilling grease, oversized process pressure drums |
All Divakaran drum storage racking systems are structurally calculated following IS 800:2007, EN 15512, and RMI standards. Every system is engineered from tested hot/cold-rolled steel profiles matched to specific dynamic floor loading requirements.
Global supply chain shifts, tightening environmental mandates, and automation are reshaping drum storage procurement across petrochemical, pharmaceutical, and manufacturing sectors.
Global regulatory enforcement by agencies such as OSHA (USA), COSHH (UK), and State Pollution Control Boards across India and the GCC is driving procurement away from basic flat decking. Modern drum storage racking systems now mandate built-in, liquid-tight bunded sumps capable of holding at least 25% of the total liquid volume stored or 100% of the largest individual drum, whichever is greater.
Divakaran provides factory-tested, continuous-seam welded containment basins treated with chemical-resistant epoxy or hot-dip galvanization to neutralize corrosive acid or alkali drips before ground contamination occurs.
With ocean freight volatility and fast-track industrial project schedules, multinational engineering contractors are prioritizing knock-down modular drum racking systems. Racks that ship in compact, standardized container bundles minimize cubic shipping volume while allowing bolt-together on-site assembly without hot work (welding) permits.
Our Umbergaon fabrication plant engineers pre-punched, robotic-welded uprights and beam connectors that fit directly into standard 20ft and 40ft High Cube sea containers, enabling seamless global delivery from Gujarat to Middle Eastern, African, and Canadian project sites.
The rise of automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) in chemical warehousing is transforming drum cradle tolerances. Millimeter-accurate cradle locating brackets and infrared sensor-compatible retro-reflective targets are becoming standard procurement requirements.
Divakaran engineers high-tolerance drum retention saddles with chamfered lead-ins, ensuring autonomous robotic clamps or automatic guided reach trucks execute snag-free drum extraction and deposit without manual intervention.
Heavy oil refineries, maritime shipyards, and coastal industrial corridors face aggressive salt-spray and corrosive chemical atmospheres. Standard spray paint is no longer acceptable. Future-proof procurement demands heavy-duty thermoset powder coatings with salt-spray resistance exceeding 500 hours or hot-dip galvanized finishes complying with ISO 1461.
At Divakaran, our multi-stage surface preparation, chemical degreasing, zinc phosphating, and electrostatic powder curing lines ensure every drum storage rack withstands harsh chemical vapors and extreme warehouse humidity.
Modern drum storage racking systems have evolved from static iron framework into smart, structurally optimized, and intrinsically safe warehousing assets.
Divakaran Storage and Handling Systems Pvt. Ltd. delivers real manufacturing credibility, engineering transparency, and proven reliability across global heavy industries.
Operating from our expansive factory at C1/16 & 17, G.I.D.C. Industrial Estate, Umbergaon – 396171, Dist. Valsad, Gujarat, we control 100% of the manufacturing value chain. We do not broker third-party steel products.
From prime certified raw steel coil slitting and automated roll forming to high-precision robotic welding, phosphating, and powder coating, every drum storage racking system component is produced under strict ISO-compliant quality checks.
Our heavy storage systems are proven across challenging global markets. Beyond hundreds of major domestic infrastructure and manufacturing hubs across India, Divakaran regularly exports precision racking components to Bahrain, Sri Lanka, Canada, and the broader Middle East (UAE, Oman, Qatar, Saudi Arabia, Kuwait).
Every export shipment is packaged in secure knock-down bundles with maritime weatherproofing, labeled component drawings, and complete assembly schematics for streamlined customs clearing and fast project handover.
Our engineering precision and uncompromising focus on structural safety have earned long-standing partnerships with industry leaders who demand impeccable facility audits:
Asian Paints, Nerolac, Bayer, Pidilite, Reliance, Sun Pharma, Cipla, Larsen & Toubro (L&T), Hindustan Unilever, Balmer Lawrie, O.N.G.C, and Pepsi. Storing high-hazard chemicals and expensive fluid compounds requires a manufacturer with zero structural failure tolerance.
Our design department develops detailed 2D bay footprints and structural load calculations tailored to your drum dimensions, forklift turning radii, and containment requirements.
Different chemical properties, turnover velocities, and space footprints demand specialized rack architecture.
Reinforced beam sections equipped with chemical-proof drip trays. Accommodates 200L resin barrels with anti-spill retaining channels and forklift guide buffers.
Inquire Now
Multi-tier horizontal cradle racking enabling high picking frequency. Direct front tap decanting turns the racking rack frame into an active blending and dispensing line.
Inquire Now
Smooth, crevice-free powder-coated steel racks or stainless steel configurations. Easy clean-down surfaces designed to meet stringent cGMP cleanroom storage regulations.
Inquire NowDirect technical answers addressing the most common search inquiries raised by warehouse managers, safety inspectors, and international procurement specialists.
Horizontal drum storage racks position drums on welded steel cradles with bung openings facing forward horizontally (typically at the 3 and 9 o'clock orientation to keep bung seals wet and prevent gasket shrinkage). This configuration is preferred for operations requiring direct liquid decanting and visual fluid level monitoring without unstacking.
Vertical drum storage racks place drums upright on heavy-duty wire decking, steel grating, or spill containment pallets. Vertical storage offers higher vertical density, accommodates both open-head and tight-head drums of varying diameters, and eliminates side-wall denting risks on thin-gauge composite barrels.
Under EPA 40 CFR 264.175 and OSHA 1910.106 standards, chemical storage systems must feature secondary containment capable of holding at least 10% of the total aggregate volume of all stored containers or 100% of the largest single container, whichever is greater.
Divakaran engineers integrated leak-proof, continuous-weld steel sump trays directly beneath rack beam elevations or at the floor level. These bunds feature removable galvanized grating for easy cleaning, drain plugs for controlled fluid reclamation, and optional acid-resistant poly liners for aggressive corrosive liquids.
A standard 55-gallon steel drum filled with water weighs approximately 210–230 kg (460–500 lbs). Filled with denser chemical compounds such as sulphuric acid or concentrated paints, an individual drum can weigh in excess of 320–350 kg.
A typical 2.7-meter bay holding three horizontal drums side-by-side per pair of beams requires a certified uniformly distributed load (UDL) rating of at least 1,200 to 1,500 kg per beam level. A 3-tier bay will support up to 4,500 kg total live load, demanding heavy-section upright columns (minimum 90mm x 70mm x 2.0mm structural steel profiles) with heavy baseplates anchored to a certified M25 concrete warehouse slab.
Horizontal drum storage systems can be loaded using standard forklift forks if the cradle channels feature chamfered entry angles and adequate fork pocket spacing. However, for maximum workplace safety, facilities typically deploy either hydraulic drum rotator clamps, parrot-beak mechanical drum lifters, or fork-mounted drum positioners that cradle the barrel without puncturing outer metal rims.
Divakaran designs cradle geometries compatible with standard 1,000mm–1,200mm fork tine spreads as well as dedicated drum handling lift attachments.
For outdoor yard storage, marine environments, or chemical plants with aggressive acidic/alkaline atmospheres, standard electrostatic spray paint will deteriorate rapidly. Divakaran recommends two proven treatments: Hot-Dip Galvanization according to ASTM A123 / ISO 1461 (providing a metallurgical zinc alloy barrier offering 25+ years of rust prevention) or our multi-stage pure polyester powder coating cured at 200°C over zinc-phosphated steel surfaces.
All Divakaran storage racks are manufactured as knock-down modular components. Upright frames are either shipped flat-packed or pre-bolted with heavy gauge horizontal/diagonal bracings. Beams, drum saddles, and spill sumps are bundled using heavy steel strapping, edge protectors, and moisture-barrier shrink wrap.
Components are container-stuffed at our factory in Umbergaon, Gujarat, ensuring maximum cubic utilization for standard 20-foot and 40-foot High Cube containers, allowing rapid transit through major western Indian sea ports to clients across the Middle East, Bahrain, Sri Lanka, and Canada.
