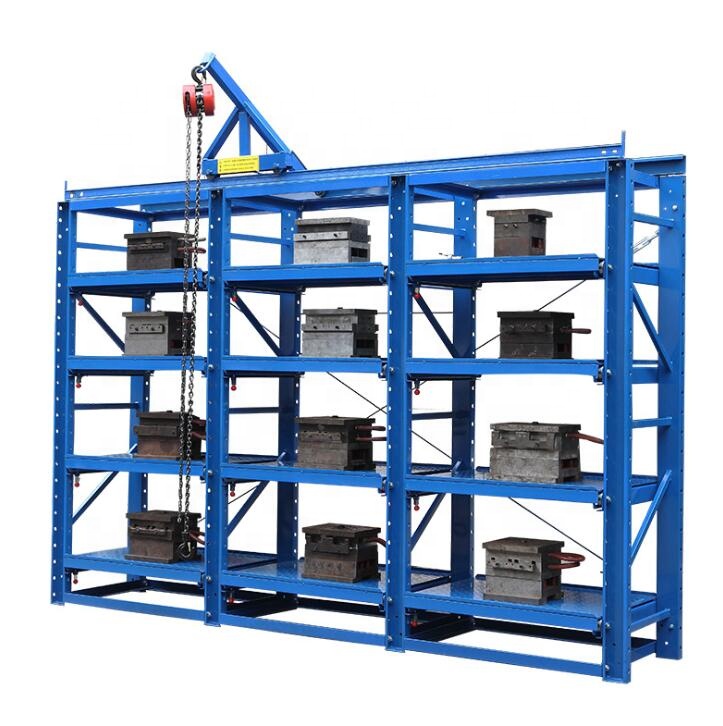

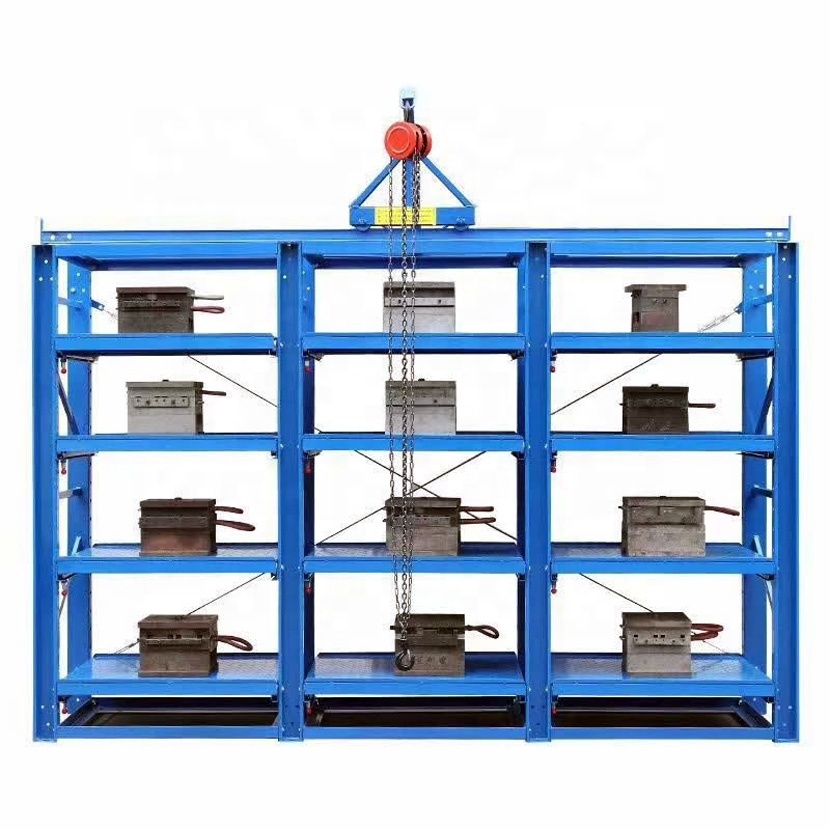

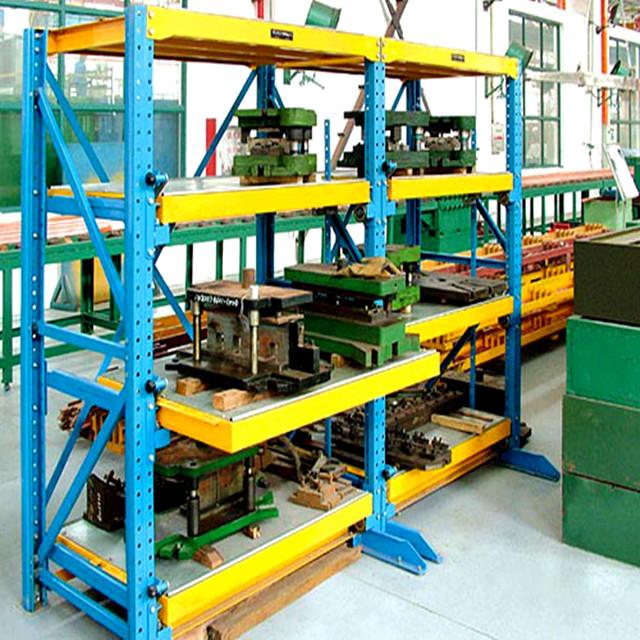

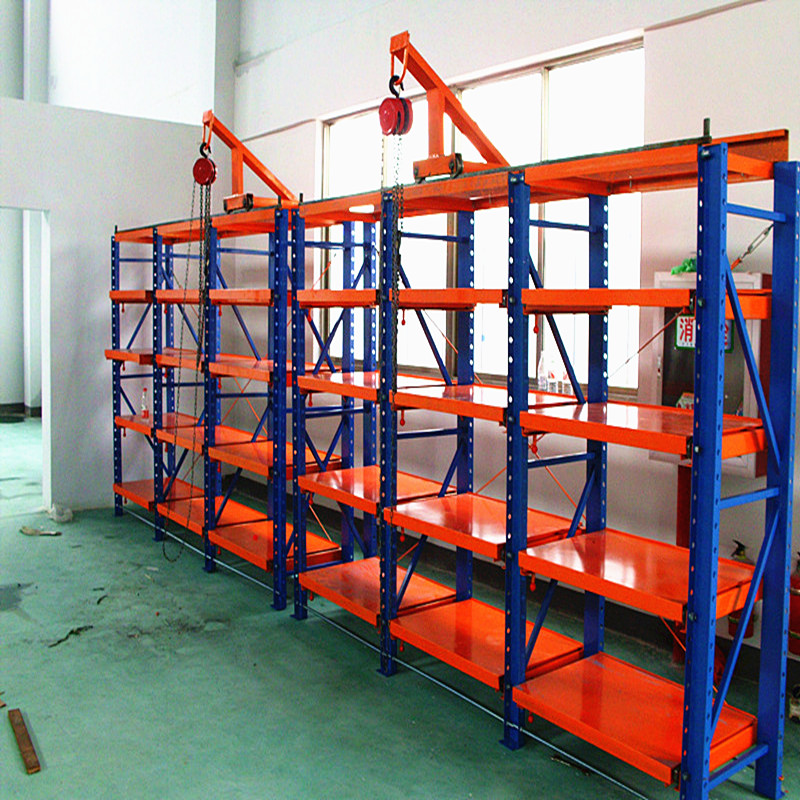

Mold rack is mainly designed for storing various kinds of molds. According to loading capacity, it is classified into Drawer Type Mold Rack and Open-Type Mold Rack. The top of the mold rack can be equipped with a crane, manual hoist, and specialized mold rack sling.
| Standard Size | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

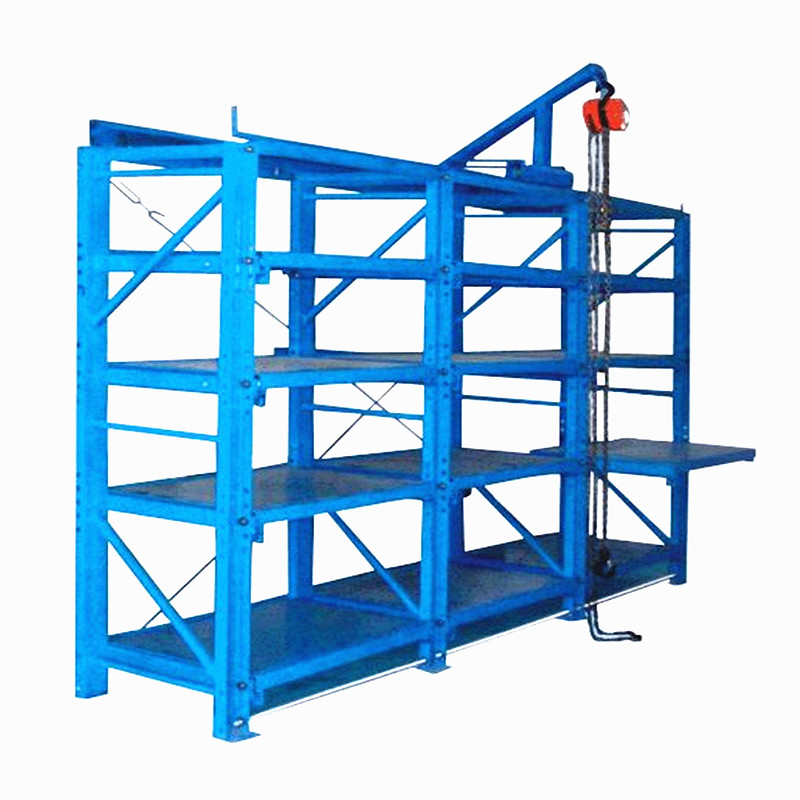

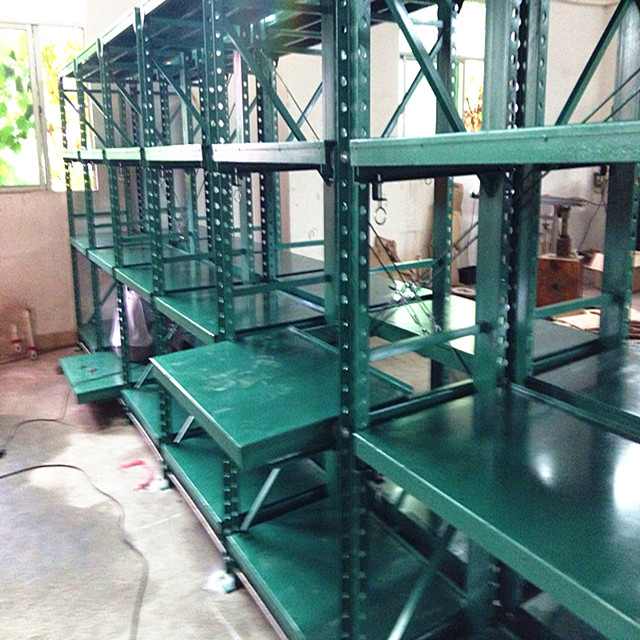

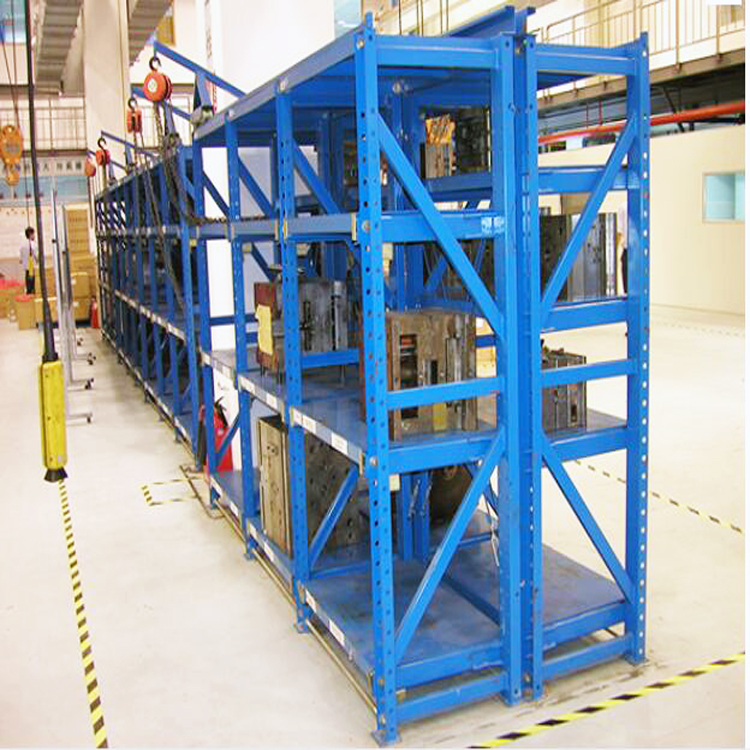

| Product | Drawer Type Mould Rack |
|---|---|
| Material | High-Quality Channel Steel |
| Standard Size | L3100*D600*H2000mm |
| Color | Green; Blue. Can be customized. |
| Loading Capacity | 1000KG / drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble wrapping |
| Standard Size (mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L3100*D800+400*H2000 | 4 | 2000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

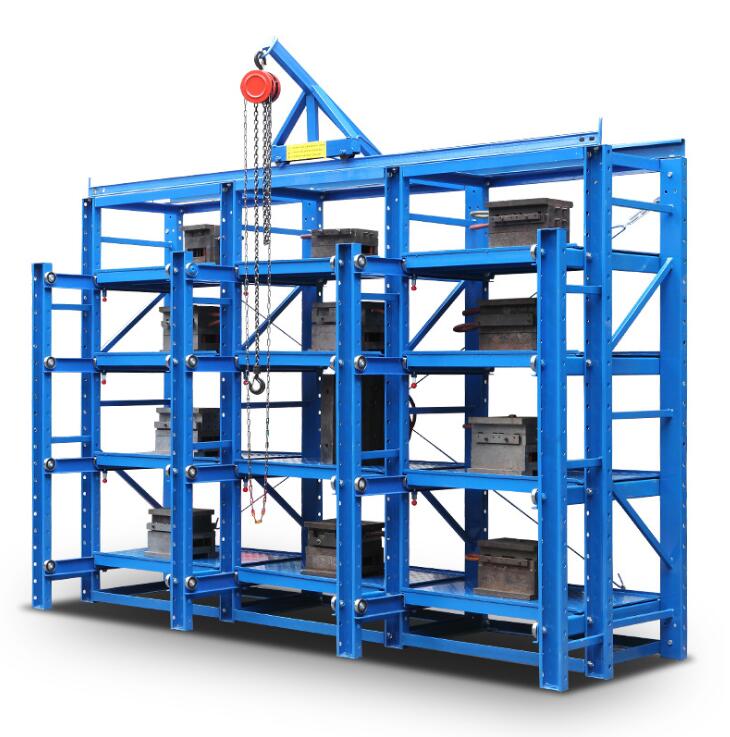

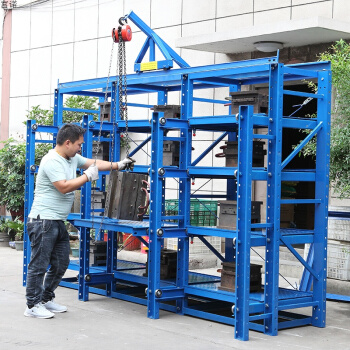

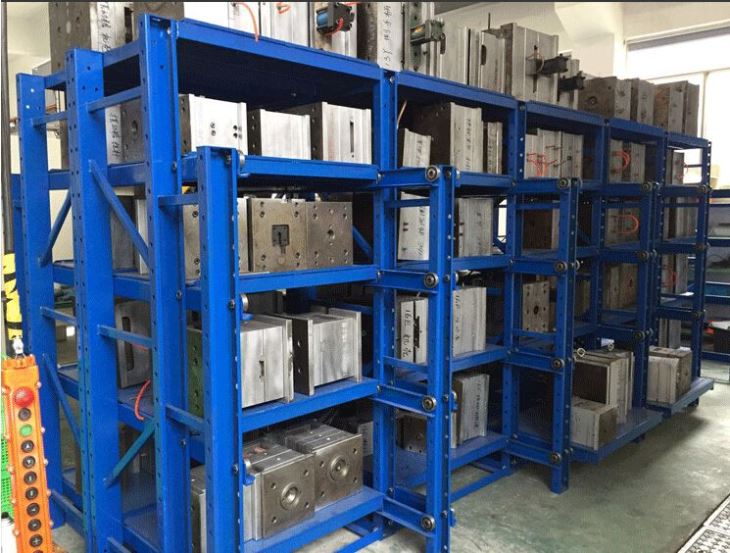

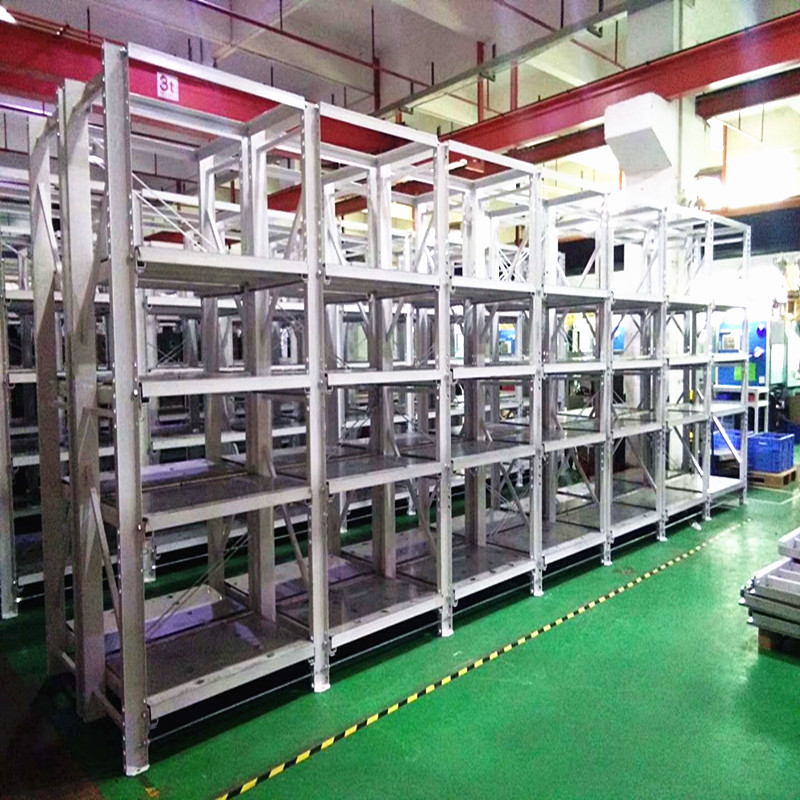

| Product | Full Open Mould Rack |
|---|---|
| Material | High Quality Channel Steel |
| Standard Size | L3100*D800+400*H2000mm |
| Color | Green; Blue. Can be customized. |
| Loading Capacity | 1000kg / drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble wrapping |

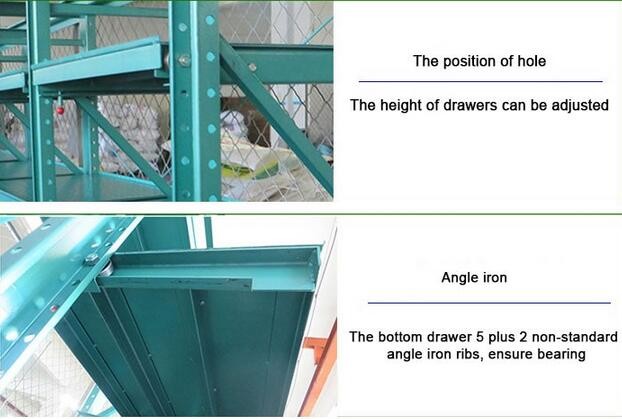

| Feature Highlights | Easy to remove the shelf boards; vertical levels and spaces are adjustable. |
|---|---|
| Each group features a pulley system and handy-lift hoist block for effortless mold loading, positioning, and unloading. | |

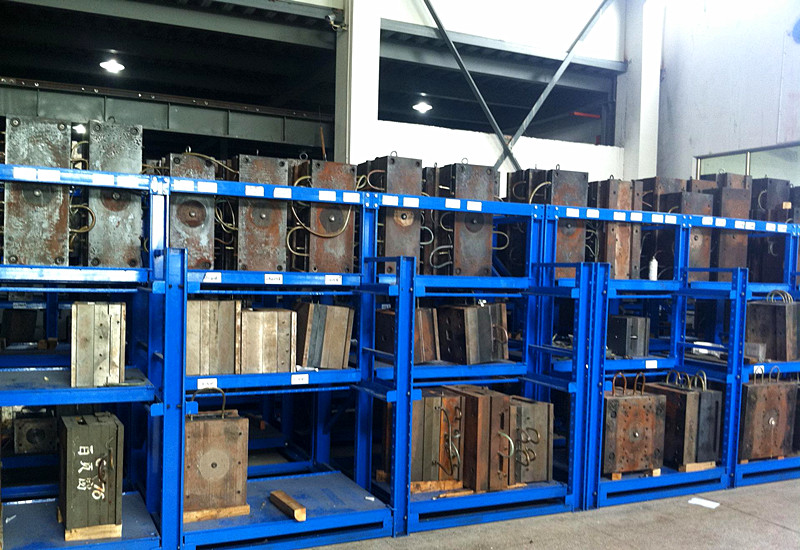

| Each section can store multiple sets of molds, making inspection, maintenance, and cataloging convenient without wasting warehouse space. | |

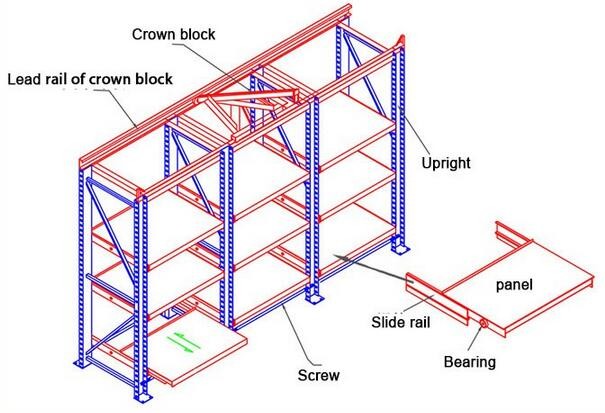

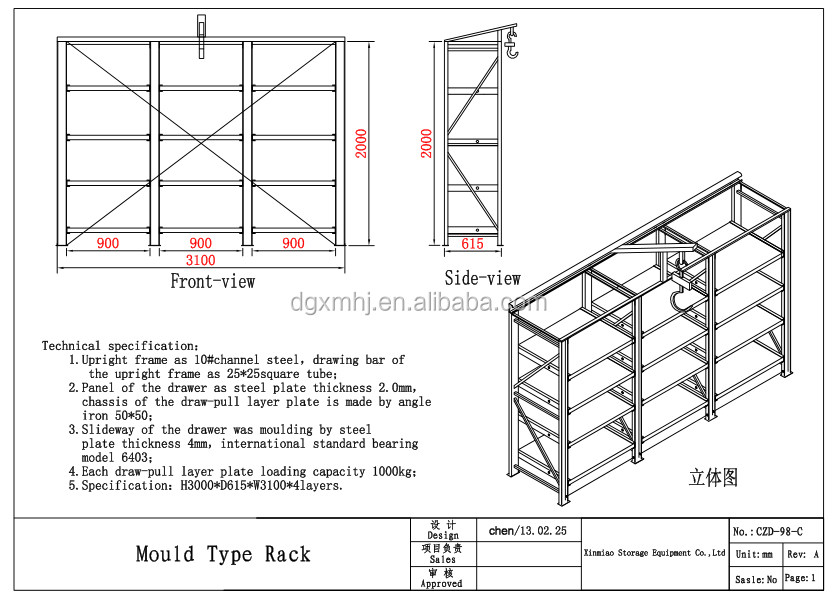

| Technological Details | The upright post adopts 10# channel steel; diagonal braces consist of 25*25 square pipes. |
| The backing plate frame is engineered with 50*50 angle iron and a 2.0mm steel shelf plate. | |

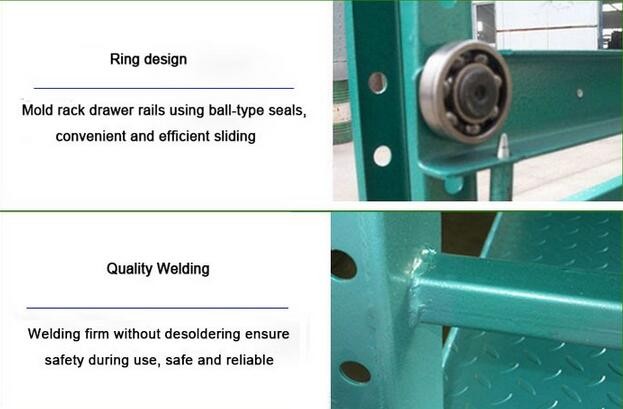

| The heavy-duty sliding chute is formed with 4.0mm precision-folded iron plate. | |
| Bearing capacity reaches 800 - 1000 kg per backing plate. | |
| Raw Material | High-quality cold rolled steel Q235. |
| Color Options | Standard color is industrial green; custom colors available on request. |
| Packaging Term | Protective foam, bubble wrap, or wooden case according to drawer mould rack requirements. |
| Delivery Time | Prompt dispatch within 15 days. |
Dongguan Xinmiao Storage Equipment Co., Ltd. devotes itself to the design and manufacture of modern storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, mobile filing cabinets, cantilever racks, rivet shelving, drive-in racks, mezzanine platforms, carton flow racks, stacking racking, and other related warehouse logistics equipment.
Through products and services aimed at providing comprehensive assistance for all warehousing, showcasing, and commercial logistics requirements, we offer our customers durable equipment of superior quality at competitive prices, backed by rapid delivery and first-class after-sales service.
We are a direct manufacturing factory specializing in warehouse and storage rack equipment.
Our factory is located in Chang'an Town, Dongguan City, Guangdong Province, China, closely neighboring Shenzhen. You can fly directly to Shenzhen Bao'an or Guangzhou Baiyun Airport. All our clients from home and abroad are warmly welcome to visit us!
The standard structural material is high-quality Q235 cold-rolled steel. We can also adjust steel grades and configurations according to your specific engineering requirements.
Yes, we are pleased to offer samples to verify structural quality, coating durability, and finish.

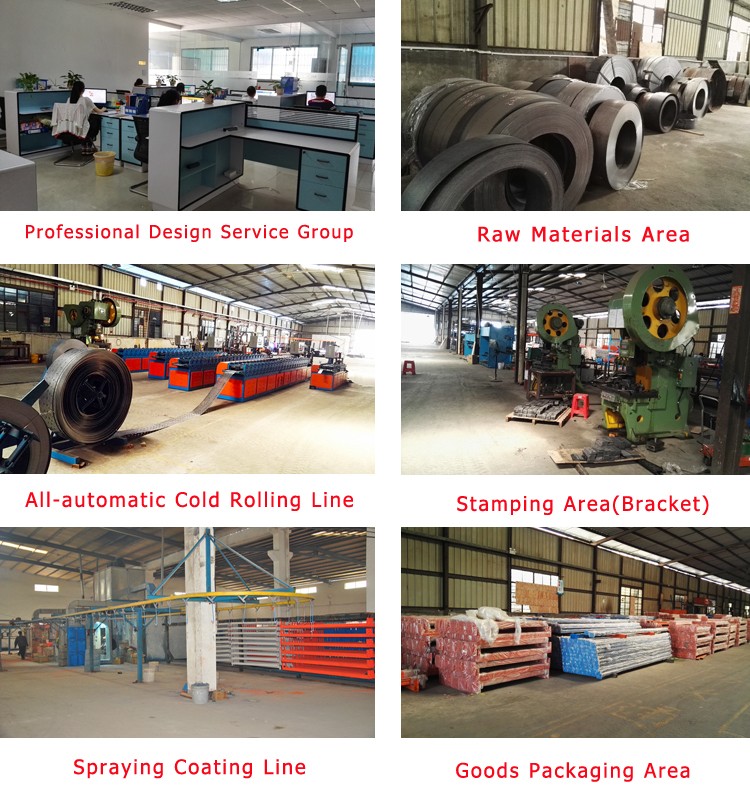

Quality is our highest priority. We implement stringent quality inspection throughout raw material selection, punching, bending, welding, powder coating, and packaging. Our manufacturing facility conforms to ISO9001 and SGS authentication standards.

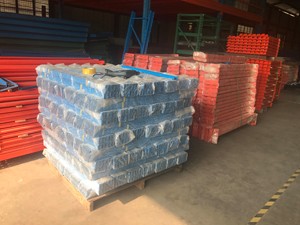

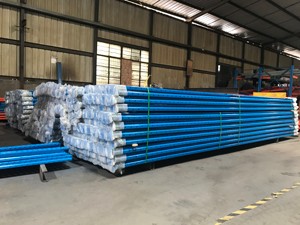

Standard lead time is within 15 days upon order confirmation. Items are carefully protected using air bubble wraps, protective foams, and optional export wooden crates to ensure damage-free transit.
