Manufactured under stringent structural standards at our Umbergaon facility in Gujarat, Divakaran Heavy Duty Racking Systems provide robust, high-density storage solutions for high-tonnage goods, industrial equipment, components, and palletized cargo. Engineered with heavy-gauge hot-rolled or cold-formed steel sections, our racks maximize vertical ceiling clearance while preserving swift crane, forklift, and manual accessibility across global distribution hubs.
Discover our precision-engineered structural models tailored for varying load footprints, warehouse ceiling heights, and picking workflows.
A heavy-capacity framework built with reinforced uprights and roll-formed box beams, ideal for tool rooms, die storage, automotive castings, and dense industrial pallets.
| Load Capacity | Up to 4,000 kg / level |
| Structural Material | Structural Steel / Stainless Steel |
| Height Range | Up to 10–12 meters |
| Surface Finish | Electrostatically Powder Coated / GI |
| Supply Ability | 500 Bays per Month |
| Handling Equipment | Forklifts, Stacker, Reach Trucks |

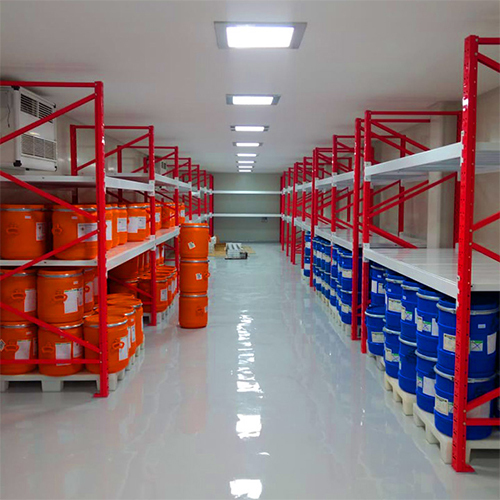

Optimized for logistics facilities where cubic volume utilization is essential. Features multi-tier capabilities and flexible beam adjustability without sacrificing structural safety.
| Load Capacity | 800 kg to 2,500 kg / level |
| Structural Material | High Tensile Certified Steel |
| Beam Pitch | 50 mm / 75 mm Adjustable |
| Configuration | Single / Double Deep Rows |
| Delivery Lead Time | 7 to 15 Days (Global Export Ready) |
| Applications | E-Commerce, FMCG, 3PL Warehousing |
Every racking component undergoes rigorous deflection analyses, load certifications, and protective surface treatments.
Manufactured using quality certified structural steel profiles that prevent torsion, buckling, and structural fatigue under maximum dynamic loading.
Pre-engineered boltless interlocking connectors and upright columns allow compact containerization for seafreight and rapid on-site assembly.
Automated multi-stage pre-treatment followed by oven-baked epoxy polyester powder coating delivers superior corrosion and abrasion resistance.
| Component | Standard Range | Custom Availability | Compliance / Standards |
|---|---|---|---|
| Upright Frames | 80x60mm, 90x70mm, 100x70mm | Heavy profile up to 120mm | EN 15512 / ISO Compliant |
| Load Beams | Box beams 80mm to 160mm | Step beams for timber/steel decks | Safety locking pins included |
| Shelf Decking | Galvanized steel panels, Wire mesh | Perforated safety panels | Heavy point-load reinforcement |
| Protection Accessories | Column guards, Frame upright protectors | End-of-aisle heavy barriers | High-impact anchor bolts included |
Divakaran systems are trusted by multinational corporations, industrial conglomerates, and infrastructure projects.
