Evaluated for steel gauge precision, electrostatic powder coat adhesion, deflection compliance under AS4084 / FEM 10.2.02, and modular export efficiency.
High-precision roll-formed uprights paired with step-beams and steel drop-in shelves. Optimized for manual box picking, distribution centers, and modular expansions.
Specialized heavy structural coil storage engineered with curved saddle beams to prevent raw material distortion while securing cylindrical steel inventory.
Integrated heavy-duty rack-supported mezzanine system utilizing vertical overhead cubic volume to double or triple usable floor space without civic construction.
Heavy structural H-beam and cold-formed profile framework providing seismic stability, heavy equipment bearing capacities, and integrated safety barrier balustrades.

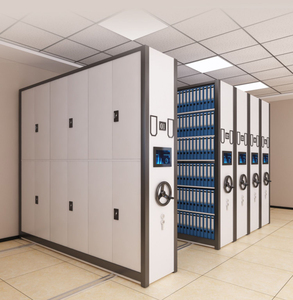

Intelligent motorized mobile bases gliding over recessed rails. Features hands-free voice indexing, automated aisle clearance, and infrared worker proximity protection.
Engineered for leased facilities. Rapid modular bolt-together system that eliminates on-site hot work, enabling future relocation or expansion with zero structural loss.
The benchmark export longspan configuration. Tool-free assembly with interlocking connectors, anti-dislodgement safety locking pins, and tough scratch-resistant coating.
Heavy-duty mobile bases consolidating multiple storage aisles into a single operational channel. Controlled via integrated digital touchscreens or remote warehouse management systems.
In modern supply chain architecture, longspan shelving systems bridge the operational divide between light-duty slotted angle shelving and heavy selective pallet racking. Often designated as medium-duty industrial shelving, these systems are engineered to accommodate medium-to-heavy hand-loaded unitized stock, totes, cartons, and irregularly shaped components that do not mandate dedicated forklift placement for each picking cycle.
Leading Chinese manufacturing hubs—concentrated across Dongguan, Guangzhou, Jiangsu, and Zhejiang—have set worldwide benchmarks by merging high-precision continuous cold roll-forming with premium structural carbon steels (predominantly Q235B and Q355B). The load-bearing capacity of an engineered longspan bay is governed not merely by metal thickness, but by the geometrical cross-section of the upright frame profile, the depth of the beam flange, and the engagement geometry of the connector claws.
A premium longspan system comprises four mission-critical structural elements:
| System Category | Bay Clear Span | Loading Capacity | Recommended Steel Grade | Decking Substrate | Target Industries |
|---|---|---|---|---|---|
| Light-Medium Longspan | 1000mm – 1500mm | 200kg – 350kg / level | Q235B (1.2mm – 1.5mm) | Steel shelf / 18mm MDF | Garments, E-commerce, Pharma, Retail |
| Heavy Industrial Longspan | 1500mm – 2400mm | 400kg – 800kg / level | Q235B / Q345B (1.5mm – 2.0mm) | Reinforced Steel / Wire Mesh | Automotive Spares, Machinery, Chemical, Hardware |
| Extra-Wide Bay Longspan | 2400mm – 3000mm | 600kg – 1200kg / level | Q355B (2.0mm – 2.5mm) | Welded Sub-channel Steel Planks | Cold-rolled steel coils, Heavy tooling, Die storage |
| Rack-Supported Mezzanine | 2000mm – 4500mm | 300kg – 1000kg / m² deck | Q235B & Q355B Structural | Perforated Steel Planks / Grating | 3PL Mega-Hubs, Central Stores, Distribution Depots |
| Motorized Mobile Longspan | 1500mm – 2200mm | Up to 15,000kg / mobile base | Q345B Structural Rails | Integrated Steel Panel Trays | Archives, Museum Vaults, Cold Stores (-30°C) |
International building regulations require that under Maximum Permissible Working Load (Uniformly Distributed Load - UDL), the vertical elastic deflection of a horizontal longspan beam must not exceed L/200 (where L is the clear span distance between upright faces), as dictated by EN 15512 and Australian Standard AS 4084:2023. In high-precision automated or pick-to-light installations, engineering teams enforce an even tighter deflection ceiling of L/300 to eliminate shelf sagging, bin misalignment, and structural fatigue over decades of continuous SKU turnover.
Rooted in over 45 years of continuous manufacturing heritage, modern Chinese storage fabrication facilities combine heavy raw steel accessibility, automated rolling mills, and turnkey pre-sales engineering.
Direct mill sourcing of certified cold-rolled coils from Tier-1 conglomerates (Baosteel, Shougang) ensures guaranteed chemical composition, yield strengths exceeding 235–355 MPa, and total trace-ability backed by EN 10204 3.1 Mill Test Certificates (MTC).
Multi-stage rolling lines with 18 to 24 roller stations guarantee continuous profile uniformity without residual micro-cracks. Automated in-line punching guarantees pitch tolerances within ±0.1mm, ensuring instant beam engagement on construction sites.
Automated shot-blasting, multi-stage acid pickling, silane passivation, and dual-zone electrostatic powder coating with thermosetting epoxy-polyester resins. Cured at 200°C for exceptional adhesion, RoHS/REACH compliance, and 500+ hours of ASTM B117 salt-spray protection.
Engineered modular components pack 100% flat. Upright frames are either delivered pre-bolted or knock-down to maximize sea container cubic utilization, fitting 24 to 26 metric tons into a single 40ft High Cube container, slashing landed shipping cost per pallet position.
Dedicated engineering teams develop tailored warehouse layouts, aisle clear-span simulations, and Finite Element Analysis (FEA) reports verifying seismic elasticity and dead/live load deflection before steel coil uncoiling begins.
From detailed 3D step-by-step installation manuals, video exploded-view guides, and numbered packaging markings to responsive remote video supervision, replacement spare supply, and multi-year warranties on structural framing components.
The global warehousing sector is moving away from static, single-purpose metal racks toward intelligent, reconfigurable, and hybrid picking platforms designed for rapid fulfillment.
Skyrocketing industrial real estate leasing rates across North America, Europe, and Southeast Asia are driving buyers toward rack-supported multi-tier platforms. Longspan frames act simultaneously as vertical structural pillars supporting elevated catwalks, stairwells, and automated tote lifts—multiplying floor utilization by 200% to 300% without civil modification.
Modern picking aisles are re-engineered for robotic synergy. Longspan shelving bays now feature widened lower clearances, high-contrast visual matrix barcodes along beam faces, and integrated inductive charging stations, allowing mobile warehouse cobots to access lower tote bins while manual pickers operate on upper tiers.
Static access aisles are being consolidated into single dynamic corridors. Mounted onto motorized steel base carriages equipped with programmable logic controllers (PLC), electric mobile longspan systems open aisles on demand via wireless touchscreens, infrared remotes, or voice command, increasing density by up to 280%.
Global ESG mandates require export factories to transition to zero-VOC, heavy-metal-free polyester electrostatic powders, alongside closed-loop water treatment lines during chemical phosphating. Chinese manufacturers increasingly provide documented Embodied Carbon footprint statements for LEED and BREEAM industrial projects.
Key technical, logistical, and commercial inquiries resolved by structural engineers and export directors to streamline cross-border longspan shelving procurement.
