Each load carrier is precision-manufactured with structural steel profiles, automated seam welding, and custom powder-coated or hot-dip galvanized surface treatments for rigorous warehouse duty.
Modern enterprise warehouses face extreme dynamic forces, seismic load regulations, and strict fire code compliance (NFPA 13). Custom OEM steel stacking pallets eliminate the creep, moisture absorption, and thermal degradation risks inherent in wood and commodity plastics.
Fabricated from high-tensile hot-rolled Q235B and cold-formed Q355B structural steel, our steel pallets exhibit tensile yield ratings above 355 MPa. Under Finite Element Analysis (FEA), elastic beam deflection under full rated load is engineered to stay below L/250, ensuring zero deformation during crane placement.
Unlike HDPE or PP which experience severe glass transition embrittlement and micro-cracking at sub-zero cold-chain temperatures (-25°C to -40°C), structural steel retains its ductile toughness and impact resistance. Similarly, it is completely non-combustible, eliminating overhead ESFR sprinkler design surcharges.
Cross-border customs inspections frequently impound or fumigate wooden pallets due to bark beetles and mold contamination under IPPC ISPM-15 mandates. Custom steel pallets are naturally pest-free, non-porous, and 100% exempt from heat treatment certifications, speeding clearance through export ports worldwide.
| Evaluation Parameter | Structural Steel Pallet (OEM) | Hardwood Pallet (Heat Treated) | Heavy-Duty Virgin HDPE Pallet |
|---|---|---|---|
| Typical Lifespan | 12 to 15+ Years | 1 to 2 Years (High Maintenance) | 5 to 7 Years (Fatigue Prone) |
| Dynamic Load Capacity | 2,000 kg – 3,500 kg | 1,000 kg – 1,200 kg | 1,200 kg – 1,500 kg |
| Static Stacking Capacity | 6,000 kg – 10,000 kg | 2,500 kg – 3,000 kg | 4,000 kg – 5,000 kg |
| Fire Insurance Rating | Class 1 Non-Combustible (No Burden) | High Flammability Burden | High Flammability (Pool Fire Hazard) |
| Dimensional Tolerance | ±1.0 mm (AS/RS & Cobot Ready) | ±5.0 mm to ±10.0 mm (Warps with humidity) | ±2.5 mm (Thermal expansion variation) |
| End-of-Life Residual Value | High (85%+ Scrap Steel Recovery Value) | Negative (Disposal / Landfill Fees) | Moderate (Degraded Regrind Value) |
Global supply chain leaders are fundamentally transforming pallet procurement from disposable consumables into capital-grade returnable transport items (RTI). Here are the primary industry shifts driving modern technical tenders.
Automated storage and retrieval systems (AS/RS) and pallet shuttles require millimeter-precise deflection thresholds under heavy load. Sourcing specifications now enforce laser-inspected bottom skid flatness within ±1.0 mm to prevent conveyor jams and optical sensor errors.
Enterprise sustainability compliance demands a quantified Life Cycle Assessment (LCA). Procuring 100% recyclable structural steel stacking pallets eliminates deforestation impacts, slashes municipal solid waste tariffs, and provides a documented net-zero metal loop.
Warehouses experiencing high seasonal SKU fluctuations avoid fixed racking capital expenditures by investing in modular stackable post pallets. These units collapse flat during reverse logistics, packing 4x more empty volume into standard 40ft High Cube containers.
Accelerated chemical corrosion in coastal, offshore, fertilizer, and battery recycling logistics has spurred a shift toward heavy batch hot-dip galvanization conforming to ASTM A123 / EN ISO 1461, yielding 85µm+ zinc coatings that withstand salt spray over 1,000 hours.
How advanced OEM fabrication, smart sensors, and automated manufacturing are revolutionizing modern material handling platforms.
Next-generation steel pallets feature laser-cut, recessed protective steel cavities that house UHF RFID and BLE asset-tracking beacons. The steel casing shields electronics against physical impact from forklift forks while preserving 360-degree RF wave propagation for automated yard management.

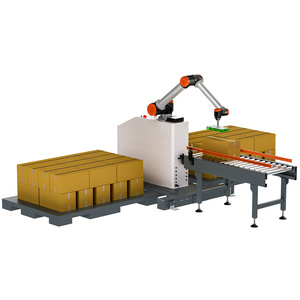

To integrate with cobot end-of-line carton stackers, custom pallets now incorporate CNC-formed chamfered lead-ins, anti-slip elastomer deck inserts, and optical alignment notches. These features allow robotic arms to place cartons at microsecond speeds without pallet sliding.
By co-molding structural steel hollow sections inside high-density virgin HDPE decks, hybrid pallets achieve extreme stiffness without excessive tare weight. This provides the chemical inertia and smooth hygiene of plastics combined with the rigidity of steel inside high-bay gravity flow racking.
Divakaran Storage and Handling Systems Pvt. Ltd. (Founded in 1977) operates dedicated manufacturing facilities in Umbergaon, Gujarat, India, delivering load-rated intralogistics storage systems across the globe.
Located at C1/16 & 17, G.I.D.C. Industrial Estate, Umbergaon – 396171, Valsad, Gujarat, our facility integrates high-tonnage hydraulic stamping presses, automated continuous roll-forming lines, multi-axis robotic welding cells, and powder-coating ovens under strict ISO QA audits.
We do not broker or trade; every steel pallet and manurack is engineered from raw mill-certified structural steel coils and tubes. Customizations include bespoke dimensions, skid orientations, fork pocket entries, post heights, mesh infills, and color-coded zinc/powder coatings.
Exporting reliably to Bahrain, Sri Lanka, Canada, Oman, Qatar, Kuwait, UAE, Saudi Arabia, and beyond. Components are packaged knock-down in high-density steel bundles designed for rapid container stuffing and destuffing, backed by pre-sales layout drawings and site installation guidance.
Detailed answers regarding load certification, container freight optimization, surface longevity, and OEM manufacturing workflows.
Connect with our technical design office in Umbergaon. We review your warehouse layout, SKU weights, and handling machinery to deliver customized 2D/3D CAD models, load certifications, and competitive FOB/CIF export pricing.
