Explore our heavy-duty rolling workstations, mobile modular tool chests, and CNC tool carrier systems designed to optimize 5S Lean workshop productivity and tool life cycle management.
Analyzing structural shifts in industrial demand: How smart manufacturing, Lean 5S environments, automated production cells, and ESG compliance are rewriting procurement criteria for international buyers.
Traditional mechanical master locks are giving way to intelligent tool storage. Modern automated assembly plants demand automated accountability where every torque wrench, diagnostic meter, and specialized cutting tool is tracked via Ultra-High Frequency (UHF) RFID or biometric scanners.
The aggressive expansion of electric vehicle gigafactories and advanced microelectronics fabrication requires tool cabinets with certified electrostatic discharge (ESD) surfaces. Static dissipative coatings maintain surface resistivity between 10^6 and 10^9 ohms.
Procurement directors are avoiding rigid, fixed-configuration tool carts. High-mix low-volume production requires reconfigurable drawer depths, standardized slotted side panels (Euro-perforation and square pegboard), and customized dual-color CNC foam trays.
What separates light commercial utility boxes from true industrial-grade tool cabinets? Precision manufacturing tolerances, metallurgical purity, and fail-safe safety mechanics.
Our heavy-duty workshop cabinets utilize high-tensile cold-rolled steel sheets conforming to JIS G3141 SPCC-SD and EN 10130 DC01 specifications. Unlike standard unibody bend fabrications that distort under load, our chassis features internal box-channel upright posts and multi-point automated robotic resistance welding.
Upright posts feature 1.5 mm to 2.0 mm wall thicknesses, while drawer bodies are pressed from 1.0 mm to 1.2 mm deep-drawing steel. This architectural rigidity eliminates diagonal twisting (racking) when maneuvering rolling workstations over uneven concrete surfaces or expansion joints under full 1,500 kg payload.
The operational backbone of high-capacity storage is the telescopic drawer slide assembly. We implement cold-drawn three-section full-extension ball-bearing slides utilizing heat-treated carbon steel ball bearings housed in zinc-plated hardened retainers, supporting 45 kg (standard) up to 150 kg (heavy duty dual-slide) per level.
For workplace safety, high-drawer configurations incorporate our patented mechanical Anti-Tilt Interlocking Safety System. Opening one drawer automatically engages a vertical sliding cam rod that locks all remaining drawers in place, eliminating the center-of-gravity shifts that cause catastrophic cabinet rollover.
Directly benchmark dynamic drawer ratings, steel gauges, wheel materials, and finish certifications across our primary production lines to streamline tender proposals and procurement schedules.
| Series Category | Steel Gauge (Body/Drawer) | Dynamic Slide Load | Countertop Surface | Mobility & Casters | Target Environment |
|---|---|---|---|---|---|

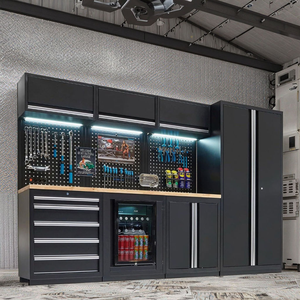

| Heavy-Duty Workshop Workbench | 1.5 mm / 1.2 mm SPCC | 100 – 150 kg / drawer | 40 mm Solid Beech / Multiplex | Optional 6" PU Shock Wheels | Automotive Engine Rebuild & MRO Heavy Duty |

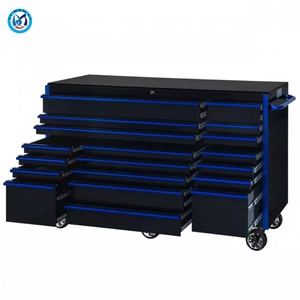

| Mobile 9 to 19 Drawer Trolley | 1.2 mm / 1.0 mm SPCC | 45 – 80 kg / drawer | Stainless 304 or 1.0" Rubberwood | 5"x2" Swivel TPR w/ Dual Brakes | Aviation Flightline & Machine Shop High Mobility |
| High-Density 30-Drawer Console | 1.2 mm / 0.9 mm SPCC | 35 – 50 kg / drawer | Anti-Scratch Embossed SS 430 | Static Leveling Mounts / Base Plinth | Hardware Sorting & Tool Rooms Max Density |
| Stainless Steel Stand Frame | 2.0 mm Tube / 304 Austenitic | Static Rack: 800 kg total | Perforated Tool Hanging Rack | Conductive ESD Synthetic Casters | Cleanrooms, Chemical & EV Cells Anti-Corrosive |
Operating a scalable manufacturing complex in China, we leverage automated CNC sheet metal processing lines, automated powder coating systems, and comprehensive destructive testing facilities.
High-speed laser cutting centers and multi-axis CNC press brakes ensure sheet metal dimensional tolerances within ±0.1 mm for seamless assembly.
Automated zinc phosphating and electrostatic powder coating deliver superior scratch resistance and exceed 500 hours of ASTM B117 salt spray testing.
Complete custom branding, bespoke drawer layouts, custom powder-coat RAL colors, customized aluminum extruded handles, and private labeling.
Export units are protected in 5-ply honeycomb corrugated master cartons, reinforced wooden pallets, and corner protectors to ensure zero transit damage.
Key technical, logistic, and commercial insights to assist workshop outfitters, industrial distributors, and procurement managers in placing bulk orders.
Collaborate directly with our factory engineering team. Send your technical CAD drawings, payload requirements, and container scheduling parameters to receive a formal quotation and DFM (Design for Manufacturing) review within 24 hours.
